CWM-301D

Precision Control · Stable Performance

Delivering reliable anesthesia for every surgical moment.

Integrated breathing circuit with APL valve, excellent tightness.
Replacing drive bellow is not required when operating adult / pediatric anesthesia.
Equipped with 2 high-precision vaporizers. (Selectatec).
10.1 inch touch screen with no dead space.
Real-time detection for loops, Paw, BPM, VT and compliance.
Comprehensive monitoring capabilities include ventilation parameters monitoring, preset parameters, alarm indication and breathing waveform monitoring.
Top Light Design: Meets specific surgical requirements.
Altitude compensation function.
ACGO available to connect with T / Bain circuit for open operation.
Yoke system with up to 3 backup cylinders (A type with 11 L size) *.

Safe Design · Reliable Quality

Engineered for safety, accuracy, and efficiency in all procedures.

Comprehensive and Powerful Assistant

With over 30 years of dedicated effort, we have established ourselves as a leader in machining centers worldwide. Our core components are developed and manufactured in-house, allowing us to maintain rigorous quality control. Leveraging our extensive production experience, we guarantee the quality, stability, and reliability of our products.

Humanized Operation Interface

Large TFT color LCD touch screen.
New interface design, reasonable layout and color matching.
Intuitive English operating interface.
Top light design to meet special surgical requirements.
Powerful monitoring and alarm functions.

Integrated Breathing Circuit

Integrated breathing circuit with APL valve provides excellent tightness and safety.
The circuit components resistant to high temperature at 134℃ and high pressure disinfection.
Replacing drive bellow is not required when operating adult and pediatric anesthesia.
High-precision built-in duo flow sensors at both inhalation and exhalation ports.
2L volume sodium lime tank, single tank structure is more convenient to disassemble.

Built-in Flow Sensor

Built-in duo flow sensors at the inhalation and exhalation ports of an anesthesia machine provide precise monitoring and control of the gas flow rates.
Help ensure that the patient receives the correct mixture of anesthetic gases and oxygen, and they also monitor the exhaled gases to ensure proper ventilation.

High Precision Vaporizer

Vaporizer can support low flow anesthesia (as low as 0.2 L/min) and high flow anesthesia (up to 15 L/min).
Accurate output of concentrations under varying conditions of pressure, flow and temperature.
Support Selectatec mounting type and cagemount compatible.
Agent type: lsoflurane, Enflurane, Halothane, Sevoflurane.
Maintenance-free.
Fill-in type: pouring.

AGSS*

Made by aluminum alloy.
High strength, light weight, never rusts.
Enhance the safety of the environment in which members of staff in closeproximity with waste anaesthetic gases and vapors (agents) work.

Other Optional Modules*

ETCO₂：
Main stream ETCO₂ module ensures continuous assessment of the patient's ventilation status, enhancing overall safety during anesthesia.
Auxiliary Oxygen meter：
Provides an additional measurement of oxygen levels, ensuring precise and continuous monitoring of the patient's oxygenation status.
Suction unit：
Used to remove secretions, fluids, or debris from the patient's airway to ensure clear breathing passages during surgery.

Safe Design · Reliable Quality

Engineered for safety, accuracy, and efficiency in all procedures.

Comprehensive and Powerful Assistant

With over 30 years of dedicated effort, we have established ourselves as a leader in machining centers worldwide. Our core components are developed and manufactured in-house, allowing us to maintain rigorous quality control. Leveraging our extensive production experience, we guarantee the quality, stability, and reliability of our products.

01/07
Humanized Operation Interface

Large TFT color LCD touch screen.
New interface design, reasonable layout and color matching.
Intuitive English operating interface.
Top light design to meet special surgical requirements.
Powerful monitoring and alarm functions.

02/07
Integrated Breathing Circuit

Integrated breathing circuit with APL valve provides excellent tightness and safety.
The circuit components resistant to high temperature at 134℃ and high pressure disinfection.
Replacing drive bellow is not required when operating adult and pediatric anesthesia.
High-precision built-in duo flow sensors at both inhalation and exhalation ports.
2L volume sodium lime tank, single tank structure is more convenient to disassemble.

03/07
Built-in Flow Sensor

Built-in duo flow sensors at the inhalation and exhalation ports of an anesthesia machine provide precise monitoring and control of the gas flow rates.
Help ensure that the patient receives the correct mixture of anesthetic gases and oxygen, and they also monitor the exhaled gases to ensure proper ventilation.

04/07
High Precision Vaporizer

Vaporizer can support low flow anesthesia (as low as 0.2 L/min) and high flow anesthesia (up to 15 L/min).
Accurate output of concentrations under varying conditions of pressure, flow and temperature.
Support Selectatec mounting type and cagemount compatible.
Agent type: lsoflurane, Enflurane, Halothane, Sevoflurane.
Maintenance-free.
Fill-in type: pouring.

05/07
AGSS*

Made by aluminum alloy.
High strength, light weight, never rusts.
Enhance the safety of the environment in which members of staff in closeproximity with waste anaesthetic gases and vapors (agents) work.

06/07
Other Optional Modules*

ETCO₂：
Main stream ETCO₂ module ensures continuous assessment of the patient's ventilation status, enhancing overall safety during anesthesia.
Auxiliary Oxygen meter：
Provides an additional measurement of oxygen levels, ensuring precise and continuous monitoring of the patient's oxygenation status.
Suction unit：
Used to remove secretions, fluids, or debris from the patient's airway to ensure clear breathing passages during surgery.

07/07

Smart Interface · Intuitive Operation

Simplifying anesthesia management through intelligent design.

Safe, Stable And Fully Functional Anesthesia System

Precise tidal volume control technology with an automatic tidal volume compensation function ensures stable performance, safety, and reliability of the device. Instantly adjustable tidal volume allows for accurate settings. The machine supports multiple ventilation modes, including VCV, PCV, PSV, A/C, and SIMV. Powerful monitoring and alarm functions, complete with top light illumination and day/night mode, providing optimal visibility in dim operating room environments. Meets the surgical requirements of adult and pediatric of different ages
High Performance Ventilator

Modes of Ventilation
VCV: Volume Controlled Ventilation
A/C: Assist /control Ventilation
SIMV: Synchronized Intermittent Mandatory Ventilation
MANUAL: Manual
PCV: Pressure Control Ventilation
PSV: Pressure Support Ventilatio
STAND-BY: Stand-by

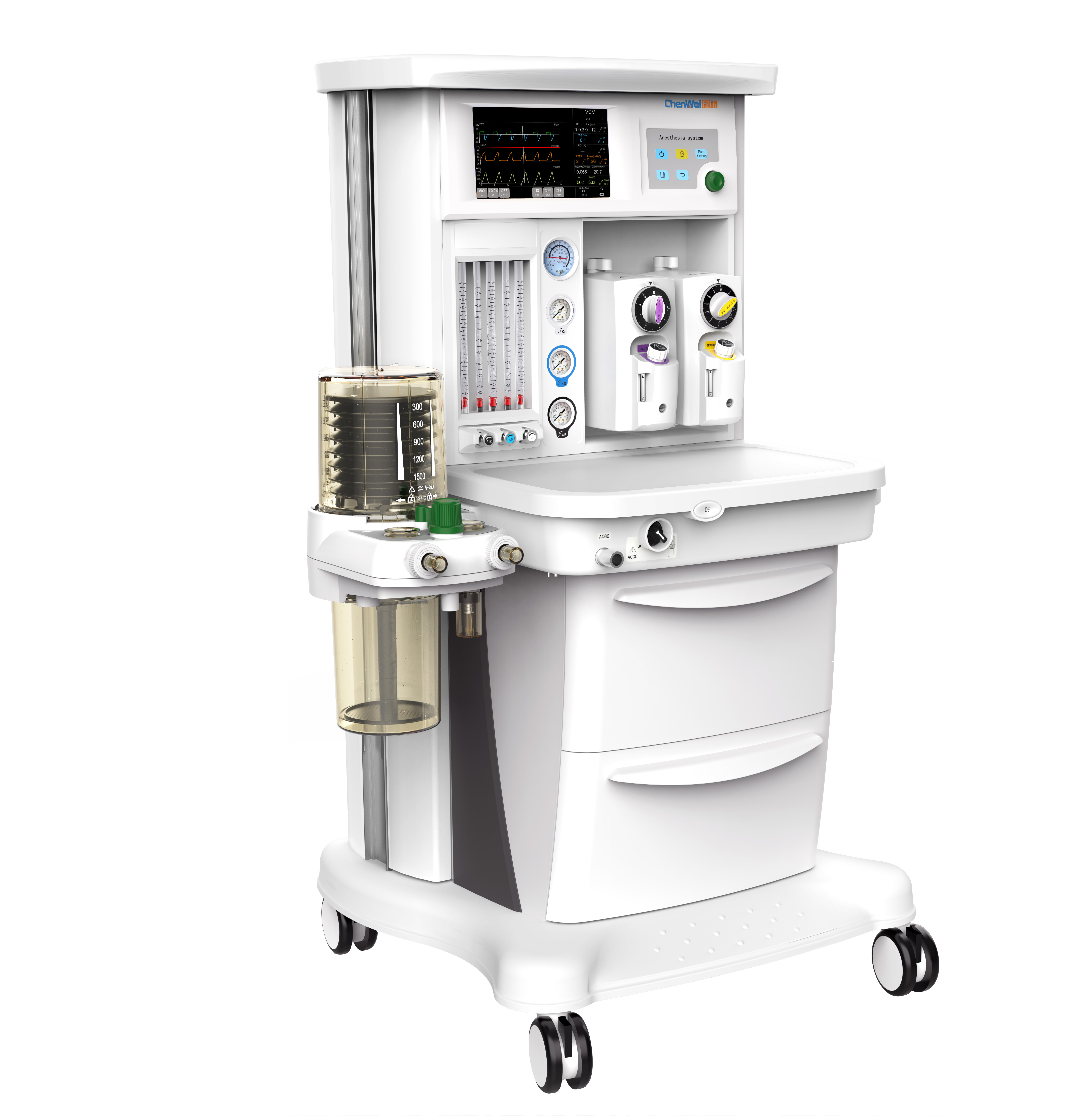

Product Details

Brand-new interface design, intelligent control system,
imported components, ensuring safer and more stable operation.

Parameter Type

Function Description

Application

Adult, Pediatric
Screen

10.1-inch color LCD touchscreen display
Modes of Ventilation

VCV, PCV, PSV, SIMV, A/C, MANUAL, STAND-BY
Display parameters

All setting and alarm parameters (including Breath rate, I/E ratio, Tidal volume, Minute volume, PEEP, Pmean, Peak, Plat, O₂ concentration, CO₂ (Optional)
Tidal volume

20 ~ 1500 mL
Battery backup

180 min
