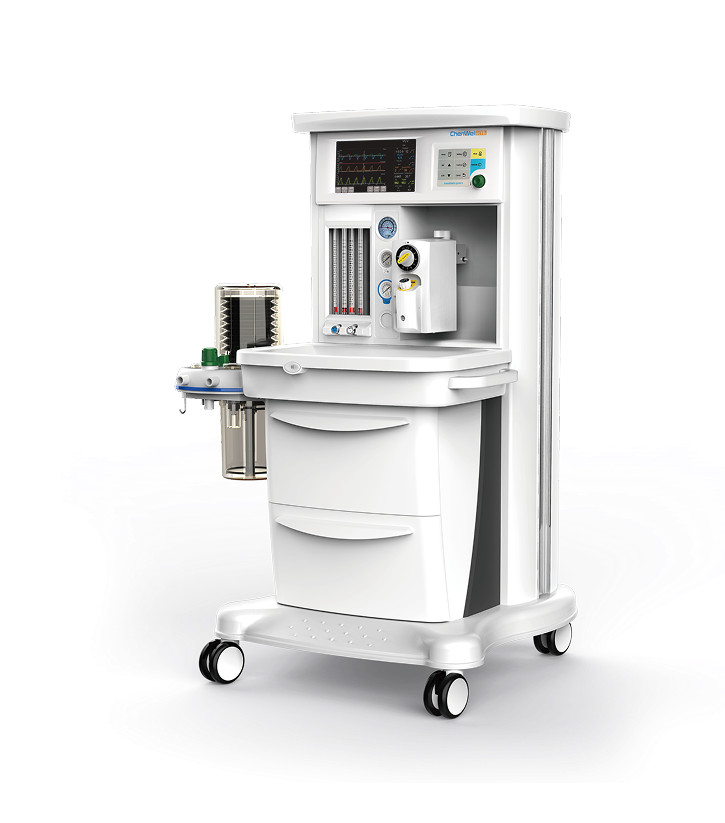

CWM-201A

Precision Control · Stable Performance

Delivering reliable anesthesia for every surgical moment.

Integrated breathing circuit with APL valve, excellent tightness.
Replacing drive bellow is not required when operating adult / pediatric anesthesia.
Max. 2 high-precision vaporizers. (Selectatec).
Real-time detection for loops, Paw, BPM, VT and compliance.

Safe Design · Reliable Quality

Engineered for safety, accuracy, and efficiency in all procedures.

Integrated Breathing Circuit

Integrated breathing circuit with APL valve provides excellent tightness and safety.
The circuit components resistant to high temperature at 134℃ and high pressure disinfection.
Replacing drive bellow is not required when operating adult / pediatric anesthesia.
2L volume sodium lime tank, single tank structure is more convenient to disassemble.

High Precision Vaporizer

Vaporizer can support low flow anesthesia (as low as 0.2 L/min) and high flow anesthesia (up to 15 L/min).
Accurate output of concentrations under varying conditions of pressure, flow and temperature.
Support Selectatec mounting type and cagemount compatible.
Agent type: Isoflurane, Enflurane, Halothane, Sevoflurane.
Maintenance-free.
Fill-in type: pouring.

Yoke System*

Up to 3 backup cylinders with A-type 11 L size.

Safe Design · Reliable Quality

Engineered for safety, accuracy, and efficiency in all procedures.

Integrated Breathing Circuit

Integrated breathing circuit with APL valve provides excellent tightness and safety.
The circuit components resistant to high temperature at 134℃ and high pressure disinfection.
Replacing drive bellow is not required when operating adult / pediatric anesthesia.
2L volume sodium lime tank, single tank structure is more convenient to disassemble.

01/03
High Precision Vaporizer

Vaporizer can support low flow anesthesia (as low as 0.2 L/min) and high flow anesthesia (up to 15 L/min).
Accurate output of concentrations under varying conditions of pressure, flow and temperature.
Support Selectatec mounting type and cagemount compatible.
Agent type: Isoflurane, Enflurane, Halothane, Sevoflurane.
Maintenance-free.
Fill-in type: pouring.

02/03
Yoke System*

Up to 3 backup cylinders with A-type 11 L size.

03/03

Smart Interface · Intuitive Operation

Simplifying anesthesia management through intelligent design.

Features

10.1 inch Large screen.
Intuitive English operating interface.
Comprehensive monitoring capabilities include ventilation parameters monitoring, preset parameters, alarm indication and breathing waveform monitoring.
Ventilation modes: VCV, SIMV, A/C, MANUAL, STAND-BY.
Max. 2 high-precision vaporizers.
FlowMeter:
2 tubes, O₂: 0.05 - 15 L/min;
2 tubes, N₂O: 0.05 - 15 L/min;
1 tube, Air: 0.1 - 15 L/min (Optional).
ACGO*

International standard design. (diameter: 22mm).
Convenient for patients’oxygen inhalation and postoperative recovery.
To connect with T circuit or bain circuit for open-operation.

Product Details

Brand-new interface design, intelligent control system,
imported components, ensuring safer and more stable operation.

Parameter Type

Function Description

Application

Adult, Pediatric
Screen

10.1-inch color screen display
Modes of Ventilation

VCV, SIMV, A/C, MANUAL, STAND-BY
Display parameters

All setting and alarm parameters (including Breath rate, I/E ratio, Tidal volume, Minute volume, PEEP, Pmax, Pmean, Cdyn and O₂ Concentration, CO₂ (Optional)
Tidal volume

20 ~ 1500 mL
Battery backup

180 min

CWM-201A Product Catalogue
