Advanced Technology · Precise Ventilation

Delivering continuous respiratory support for critical care.

Turbine based technology

40,000-hour Lifetime turbine, Support continuous work for up to 10,000 hours.
Electric Driven and Control

High-performance turbine motor for gas source. With a maximum peak flow rate ≥210 L/min.
Sequential Treatment

Possees Invasive and non-invasive ventilation, high-flow oxygen therapy functionality, providing comprehensive respiratory support for patients.
Invasive Ventilation

A secure and stable control system with comprehensive ventilation modes and auxiliary monitoring functions. Dynamic compensation for tidal volume, and oxygenation for auxiliary suction.
In/Out Patients Transfer

With a compact and light weighted main unit, it can be easily handheld. Internal lithium battery maximally supports power supply during patient transfer. One-click lock screen, prevent mis-operation.
Non-invasive Ventilation

Multiple non-invasive ventilation modes Safe and effective leak compensation High-flow oxygen therapy Comprehensive monitoring and alarm system

Adaptive Modes · Clinical Precision

Intelligent ventilation tailored to each patient’s needs.

Intelligent Ventilation,Lung Compliance Compensation

Multiple auxiliary tools and monitoring functions, advanced automatic compensation for tidal volume and lung compliance. Assist professionals with fast and accurate diagnosis of patient respiratory status.

Dynamic Lung View

Visualize ventilation status, respiratory parameters, resistance, compliance and other information to simulate the real-time respiratory status of the lungs for easy observation by clinicians.

High-flow Oxygen Therapy

High-flow oxygen therapy can rapidly increase blood oxygen saturation and reduce the symptoms of hypoxia. The ventilator has a built-in electronic air-oxygen mixer, with an adjustable range of oxygen concentration from 21% to 100%, a maximum gas flow rate of 80 L/min.

Recruitment Maneuver (Optional)

Intermittently applying continuous airway pressure and maintaining it for a period of time can recruit collapsed alveoli during ventilation. Prevent secondary alveolar atelectasis caused by low tidal volume ventilation, thereby preventing the occurrence of pulmonary complications.

Event Log Real-time Review

Provide 96 hours trends analysis graphs, storage for at least 3000 logs and alarm information. The data can be exported and saved instead of being cleared in the event of a “shut down” or power failure.

Information Interconnection Efficient Management

Ethernet, COM, HDMI, 2 USB interfaces, can connect to hospital, out-of-hospital network, monitors and other equipment. Data can be exported and easily upgraded and maintained.
Optional: ETCO₂ module, SPO₂ module.

Adaptive Modes · Clinical Precision

Intelligent ventilation tailored to each patient’s needs.

Intelligent Ventilation,Lung Compliance Compensation

Multiple auxiliary tools and monitoring functions, advanced automatic compensation for tidal volume and lung compliance. Assist professionals with fast and accurate diagnosis of patient respiratory status.

01/06
Dynamic Lung View

Visualize ventilation status, respiratory parameters, resistance, compliance and other information to simulate the real-time respiratory status of the lungs for easy observation by clinicians.

02/06
High-flow Oxygen Therapy

High-flow oxygen therapy can rapidly increase blood oxygen saturation and reduce the symptoms of hypoxia. The ventilator has a built-in electronic air-oxygen mixer, with an adjustable range of oxygen concentration from 21% to 100%, a maximum gas flow rate of 80 L/min.

03/06
Recruitment Maneuver (Optional)

Intermittently applying continuous airway pressure and maintaining it for a period of time can recruit collapsed alveoli during ventilation. Prevent secondary alveolar atelectasis caused by low tidal volume ventilation, thereby preventing the occurrence of pulmonary complications.

04/06
Event Log Real-time Review

Provide 96 hours trends analysis graphs, storage for at least 3000 logs and alarm information. The data can be exported and saved instead of being cleared in the event of a “shut down” or power failure.

05/06
Information Interconnection Efficient Management

Ethernet, COM, HDMI, 2 USB interfaces, can connect to hospital, out-of-hospital network, monitors and other equipment. Data can be exported and easily upgraded and maintained.
Optional: ETCO₂ module, SPO₂ module.

06/06

Smart Control · Seamless Monitoring

Intelligent algorithms ensure safe, data-driven care.

Comprehensive Ventilation Modes

Ventilation Modes Include: VCV, PCV, PSV, PRVC, APRV, CPAP, V-SIMV, V-A/C, P-A/C, P-SIMV, V-SIMV+PSV, P-SIMV+PSV, HFNC, BIP
Intuitive, Concise, Easy To Use

15.6-inch LCD touchscreen, multi-angle views.
Flat UI design with multilingual operation and display support, including English, Spanish, French, Russian, and more.
Two-step operation for all commands.
Adjustable screen angle for multiple observation.
Visual and audio alerts.
Stable Performance, Precise Control

Capable of supporting to the various cases of emergency & critical care. Suitable for adult, pediatric, and neonate, the system provides full-process support involving both invasive and non-invasive ventilation. A variety of ventilation modes and functions effectively improve human-machine synchronization, making breathing more comfortable for patients.
Strong Power, Safe Protection

Strong turbine power, safe and stable control system, Parallel oxygen source design, supporting both high-pressure and low-pressure oxygen sources (Optional). Integrated design of inhalation and exhalation valve components, easy to disassemble. 134°C autoclave and high-pressure sterilization support, providing safe protection for patients.

Redefining Ventilation · Empowering Care

Pushing ICU innovation toward safer and smarter solutions.

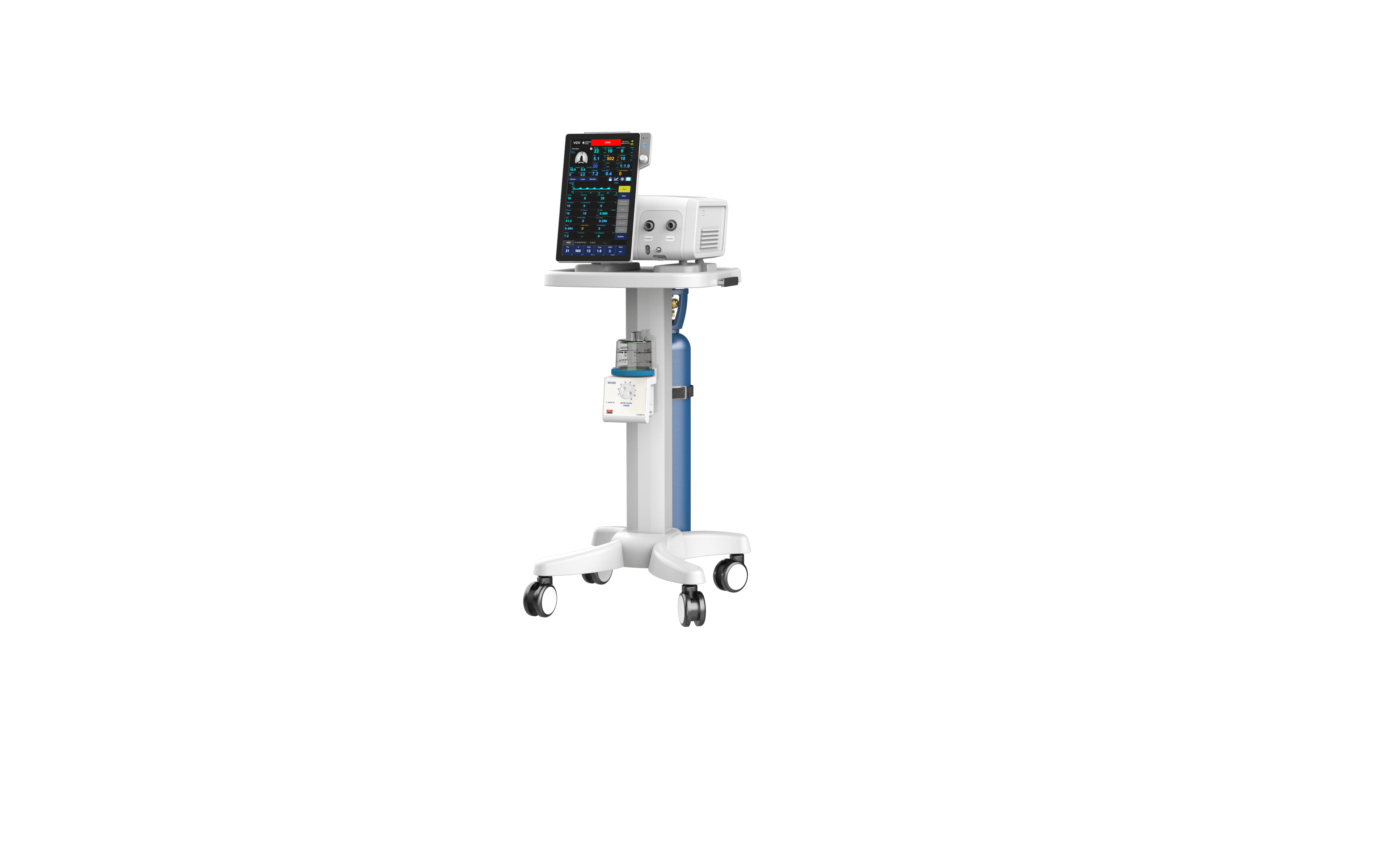

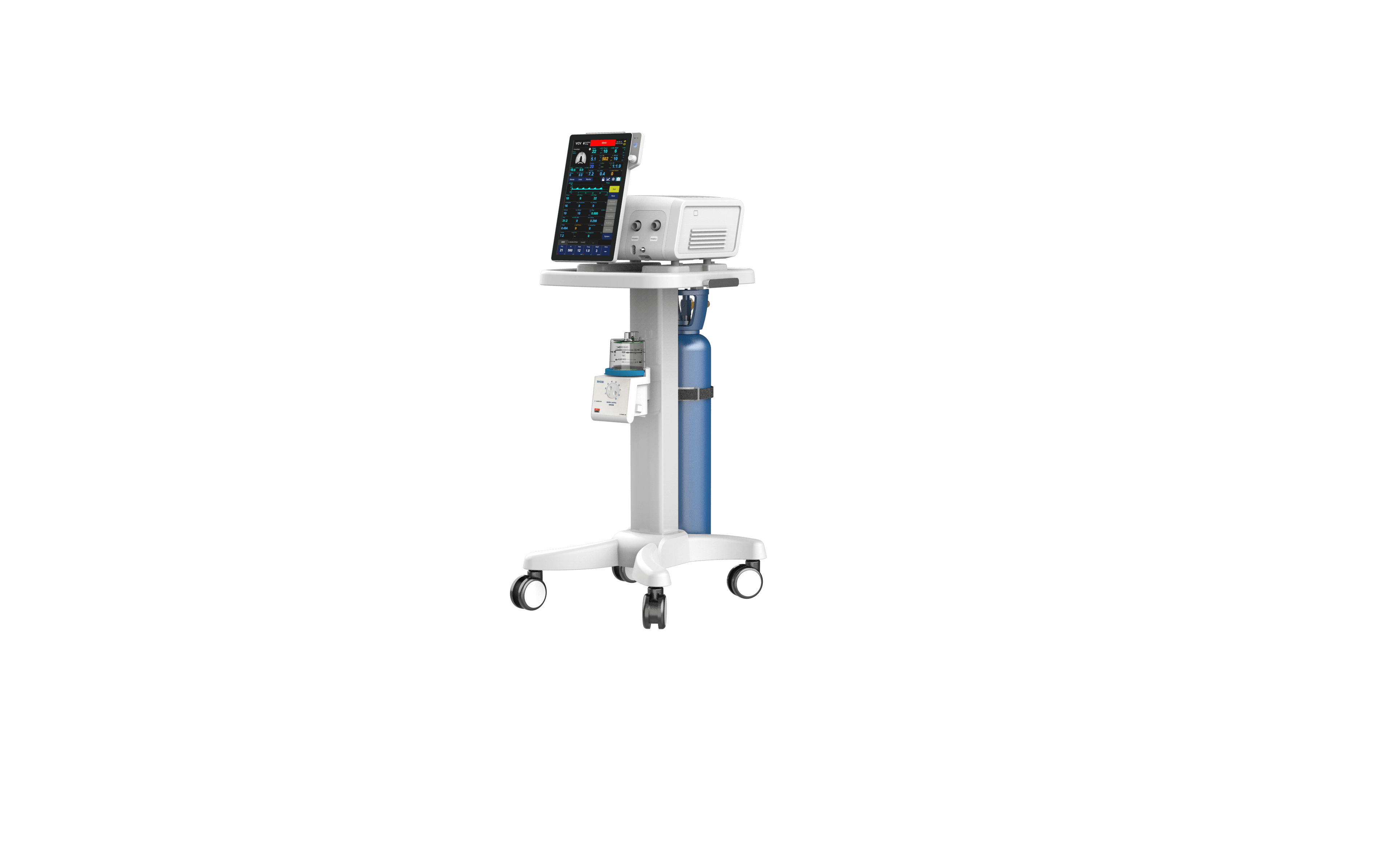

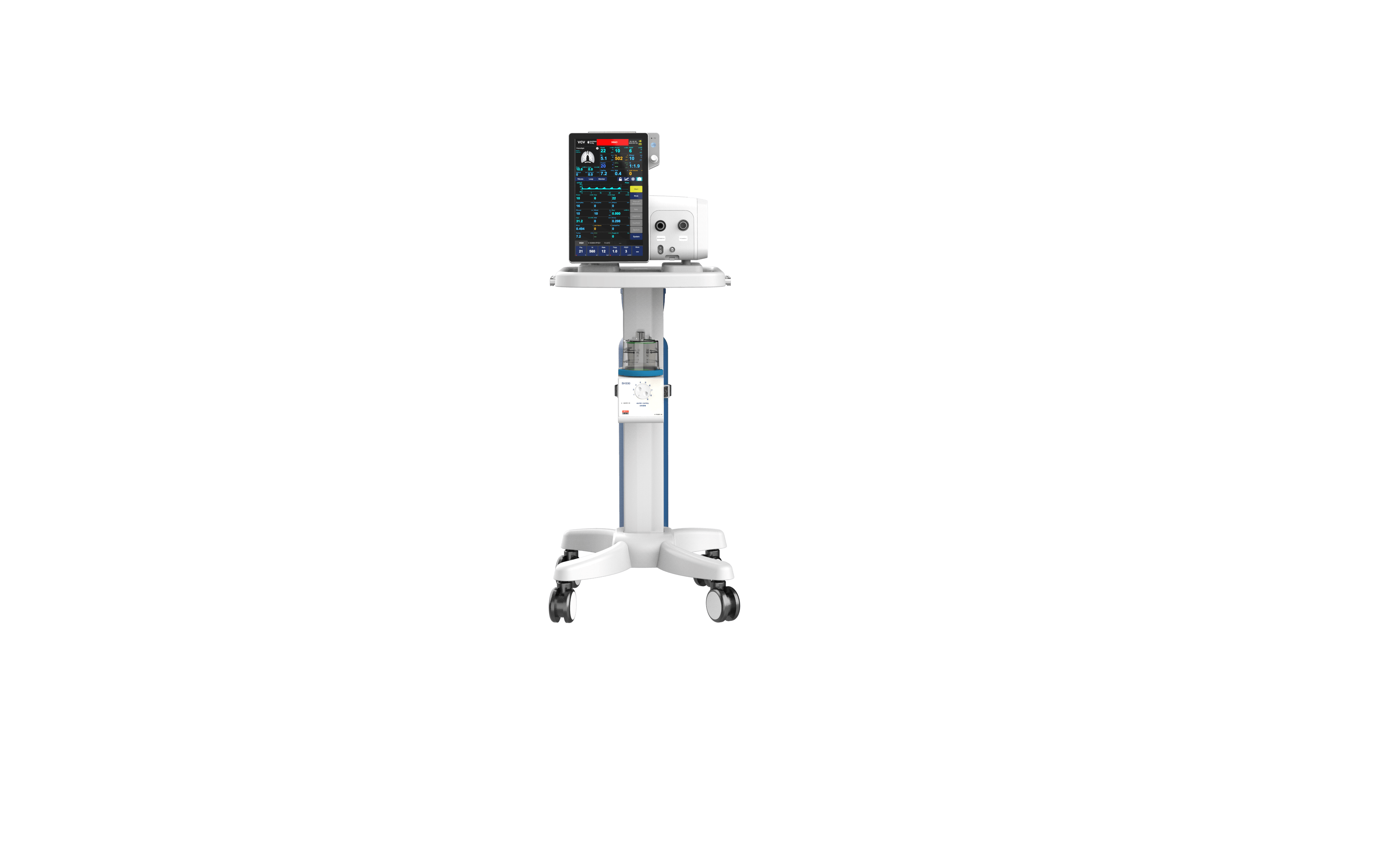

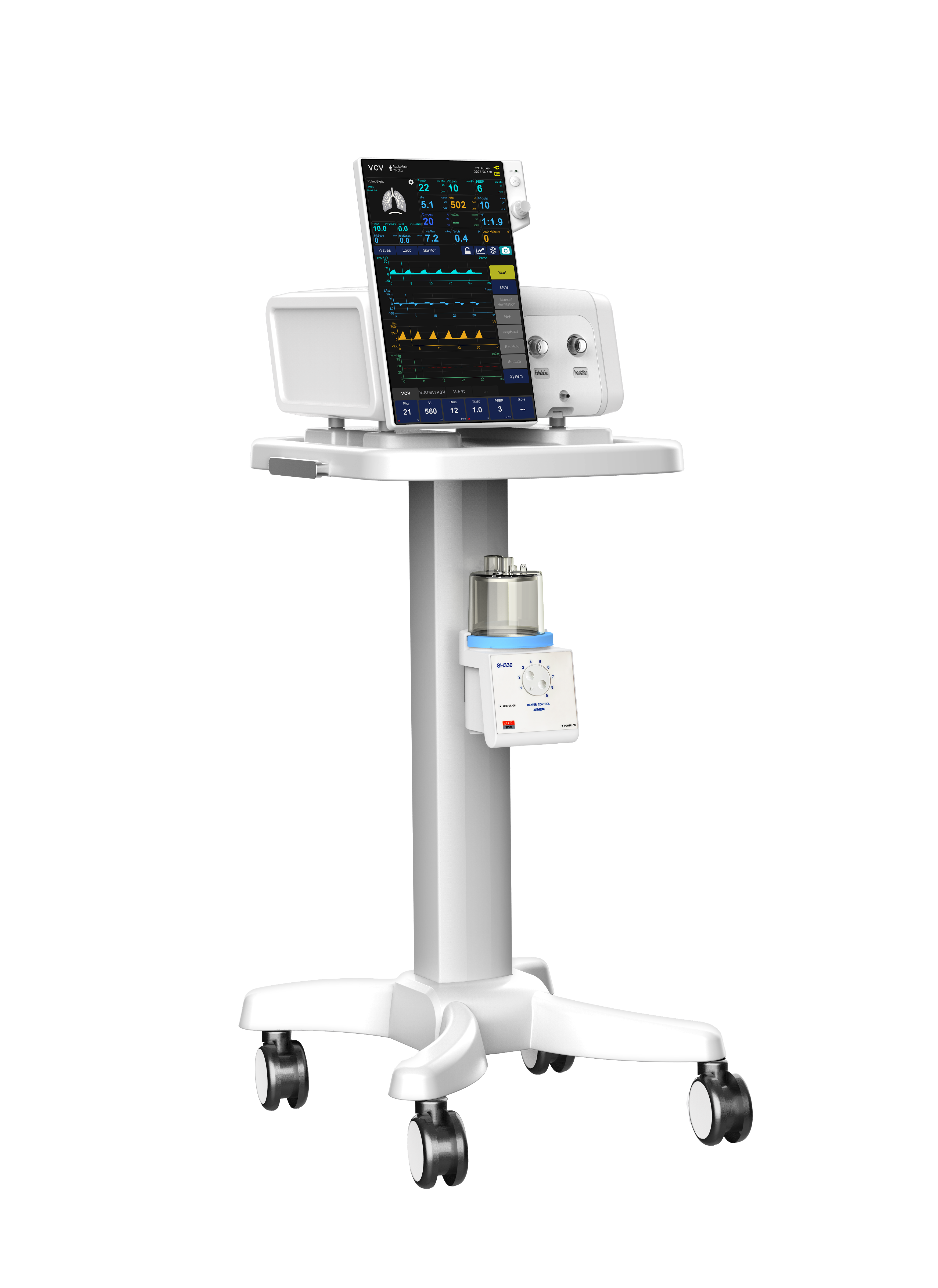

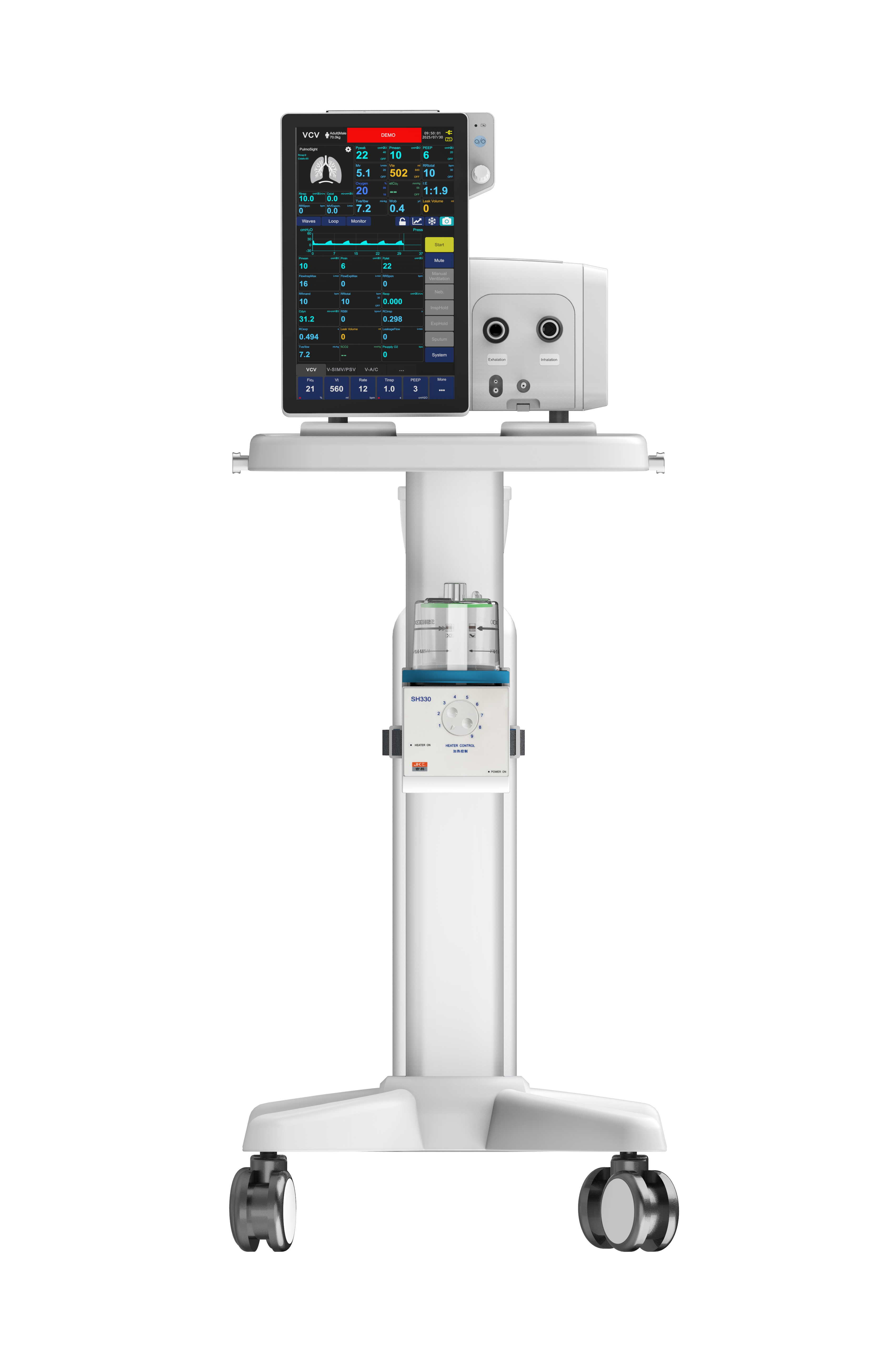

Interactive 360° View

User-friendly interface

Easy to install and convenient to dismantle

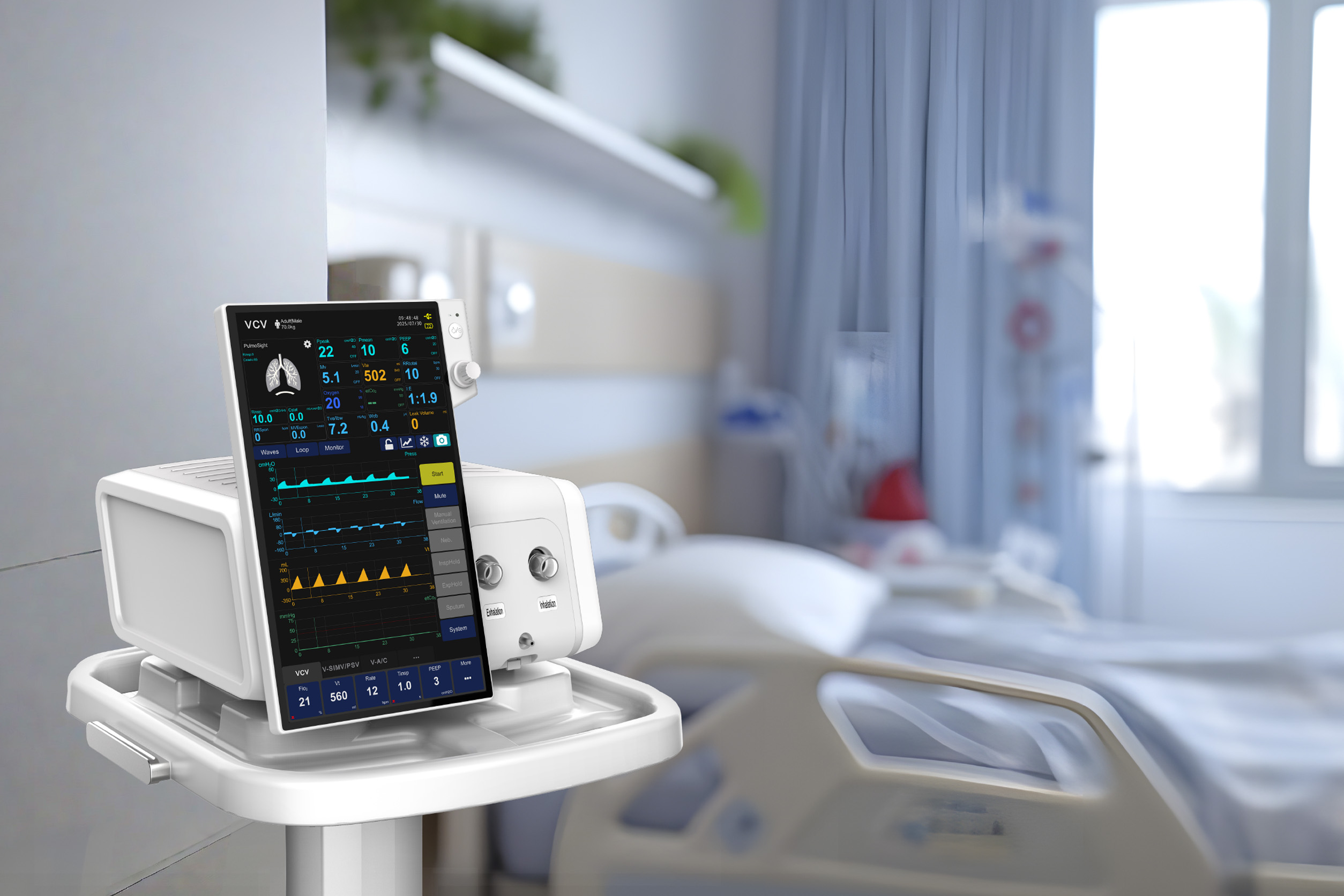

15.6-inch LCD touchscreen, multi-angel views

Simple and convenient operation

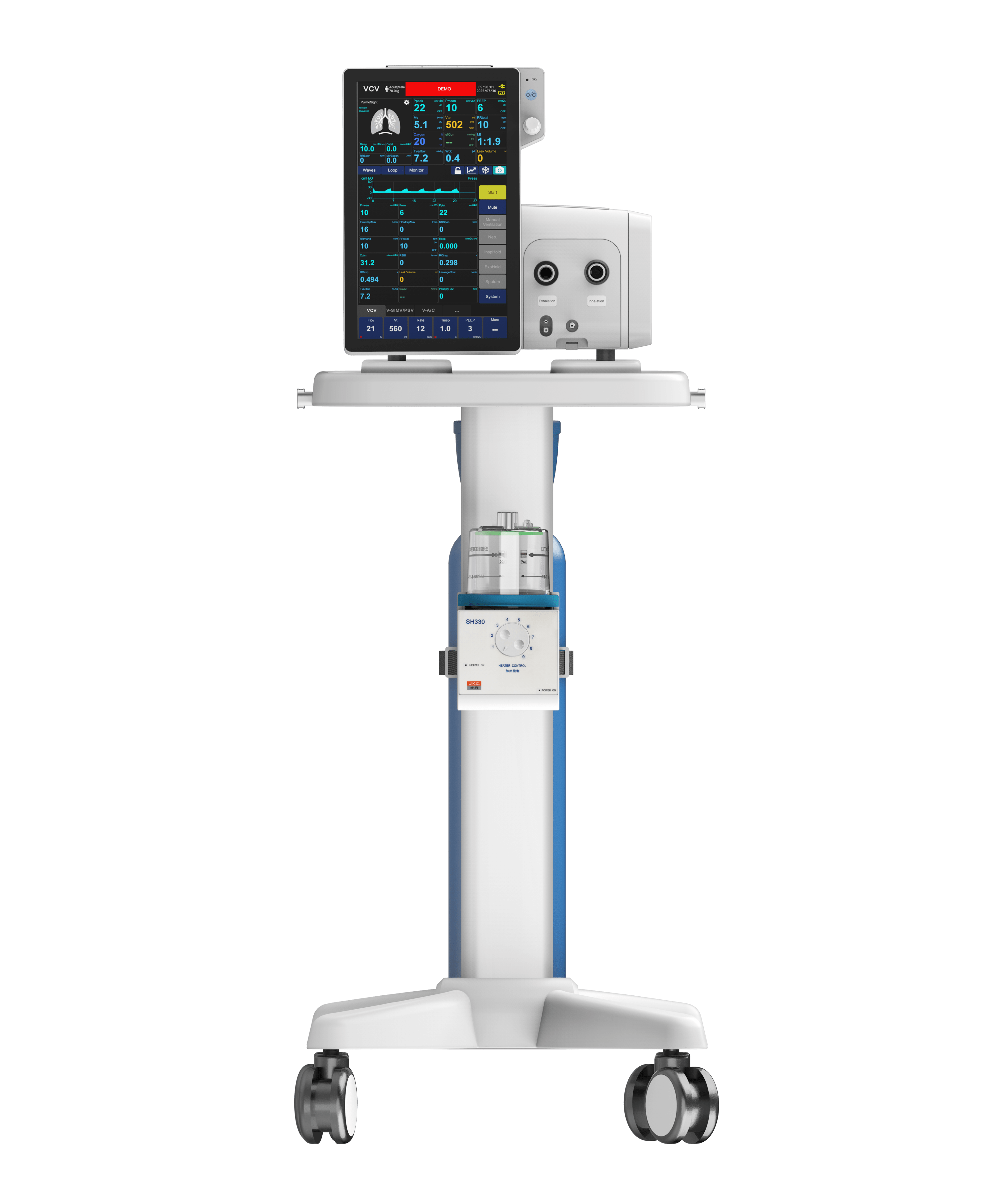

Equipped with

Adjustable humidifier chamber

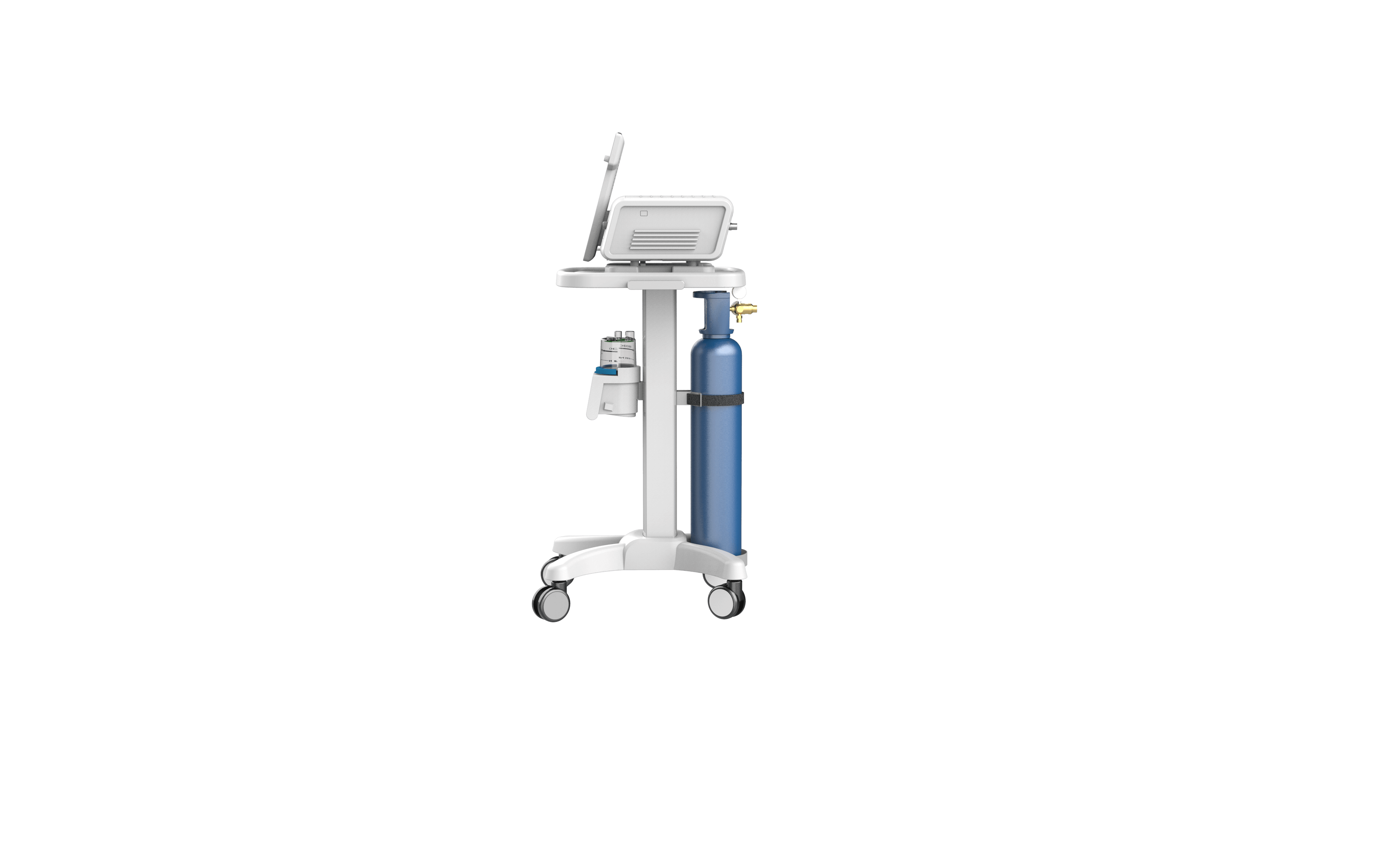

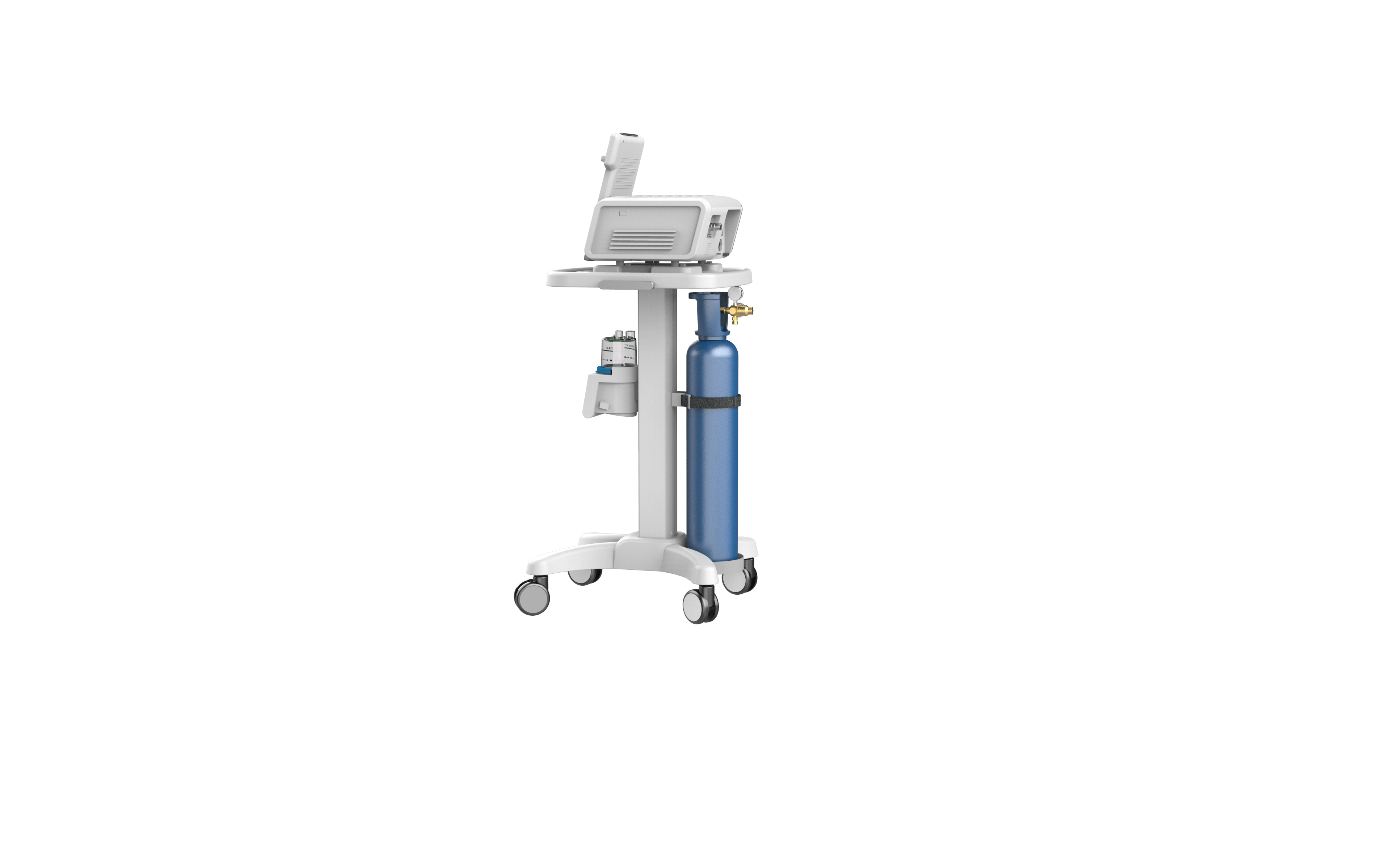

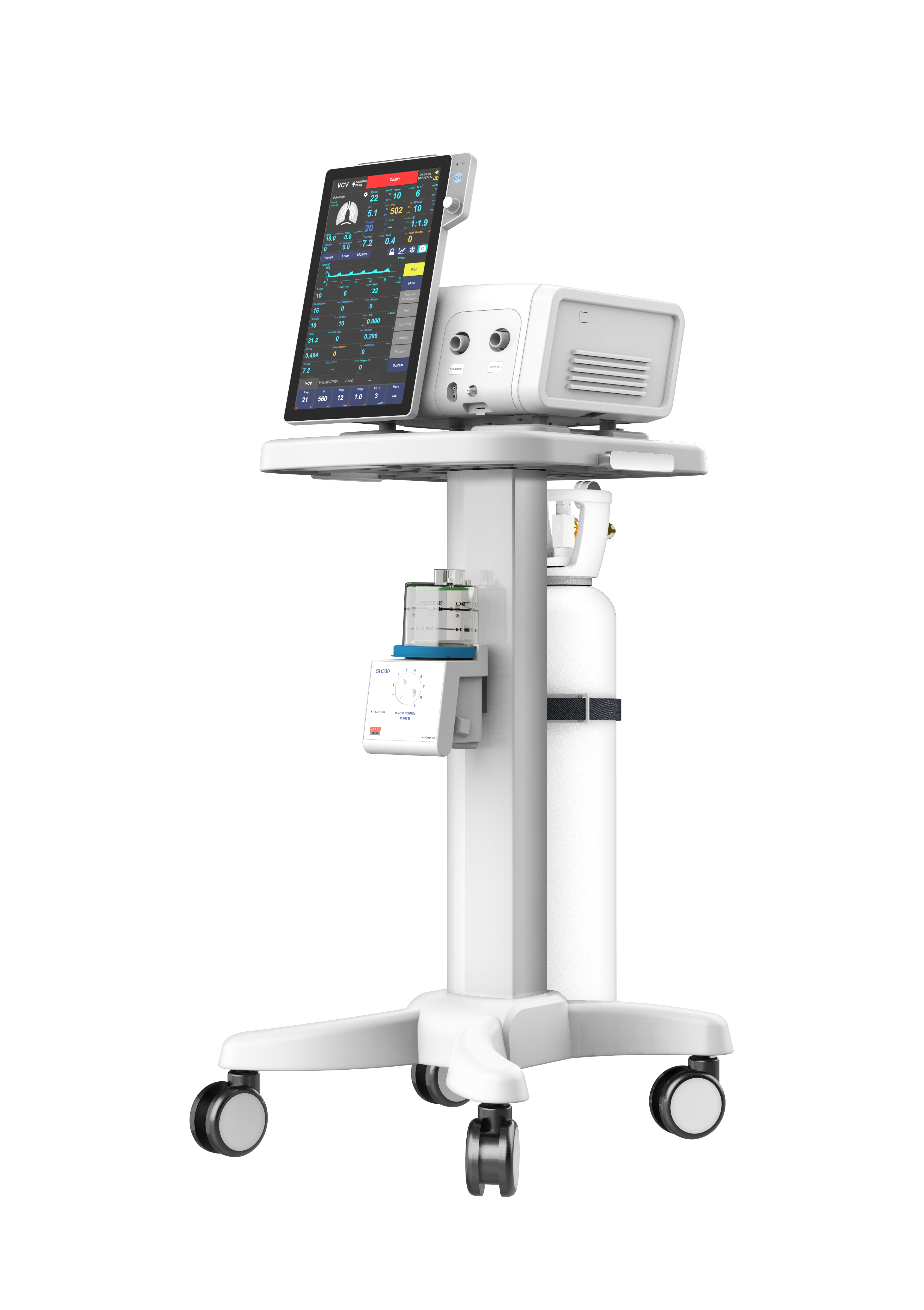

Multifunctional trolley with O₂ tank

Product Details

Brand-new interface design, intelligent control system,
imported components, ensuring safer and more stable operation.

Parameter Type

Function Description

Screen

15.6" Color active matrix TFT touch
Display parameters

VTi, VTe, VTe spon, MV, MVe spon, RR mand, RR spon, RR total, Tinsp, Texp, Ppeak, Pplat, Pmin, Pmean, PEEP, TVe/Ibw, FiO₂ , Flowpeak_insp, Flowpeak_exp, LeakageVolume, LeakageFlow, RSBI, P0.1, Rinsp, Rexp, Cstat, Cdyn, RCinsp, RCexp, WOB, EtCO₂ (Optional)
Patient type

Adult, Pediatric, Neonate
Application

Invasive, Non-invasive
Ventilation Mode

VCV, PCV, PSV, V-SIMV, P-SIMV, V-SIMV+PSV, P-SIMV+PSV, V-A/C, P-A/C, PRVC, CPAP, BIPAP, O₂ Remedy, APRV, APNEA, SIGH, STAND-BY
Tidal volume

2 ~ 2000 mL
Respiratory rate

1 ~ 200 bpm
O₂ Flow

3 ~ 80 L/min
Battery

180 min

T80 Product Catalogue

Related Recommendations

Covering all scenarios in anesthesia, critical care,
and emergency medicine—discover how our professional equipment meets your clinical needs today.

Products In The Same Series

T80

Quality and Service Philosophy

We uphold the principles of advanced technology and scientific management, committed to providing customers with safe, reliable, and sustainable medical products and comprehensive services.

Innovation and Technology-Driven

Establish a global innovation network, maintain high R&D investment, achieve breakthroughs in core technologies, accelerate the integration of automation, digitalization, and intelligence, and advance clinical research alongside high-level laboratory capabilities.
Scientific Operations Management

Our scientific operations management is embodied by a management team with an international perspective, a comprehensive management system, and a people-oriented management mechanism, all fully integrated into an intelligent operational support system.
Safety · Precision · Reliability · Sustainability

Strictly manage risks throughout the entire product and service lifecycle, implement availability and reliability engineering, establish a sustainable development mechanism based on the ESG framework, and fulfill long-term responsibilities to the environment and society.

Service Assurance System

We have established a nationwide team of technical experts who provide comprehensive, efficient technical solutions through a combination of remote online support and on-site services.

Training Center

Led by senior experts from Chenwei, we have developed a systematic training program offering a wide range of product training and learning courses.

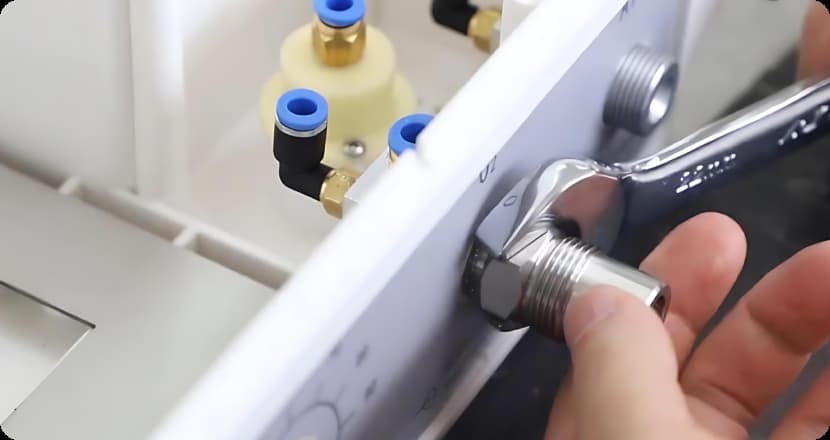

Equipment Maintenance
