Advanced Technology · Precise Ventilation

Delivering continuous respiratory support for critical care.

Lightweight and Portable

Can be carried and operated by single hand; stand alone main unit with trolley optional.
Electric Driven and Control

High-performance turbine motor for gas source. With a maximum peak flow rate ≥210 L/min.
Sequential Treatment

Possees Invasive and non-invasive ventilation, high-flow oxygen therapy functionality, providing comprehensive respiratory support for patients.
Invasive Ventilation

A secure and stable control system with comprehensive ventilation modes and auxiliary monitoring functions. Dynamic compensation for tidal volume, and oxygenation for auxiliary suction.
In/Out Patients Transfer

With a compact and light weighted main unit, it can be easily handheld. Internal lithium battery maximally supports power supply during patient transfer. One-click lock screen, prevent mis-operation.
Non-invasive Ventilation

Multiple non-invasive ventilation modes Safe and effective leak compensation High-flow oxygen therapy Comprehensive monitoring and alarm system.

Adaptive Modes · Clinical Precision

Intelligent ventilation tailored to each patient’s needs.

Intelligent Ventilation,Lung Compliance Compensation

Multiple auxiliary tools and monitoring functions,advanced automatic compensation for tidal volume and lung compliance. Assist professionals with fast and accurate diagnosis of patient respiratory status.

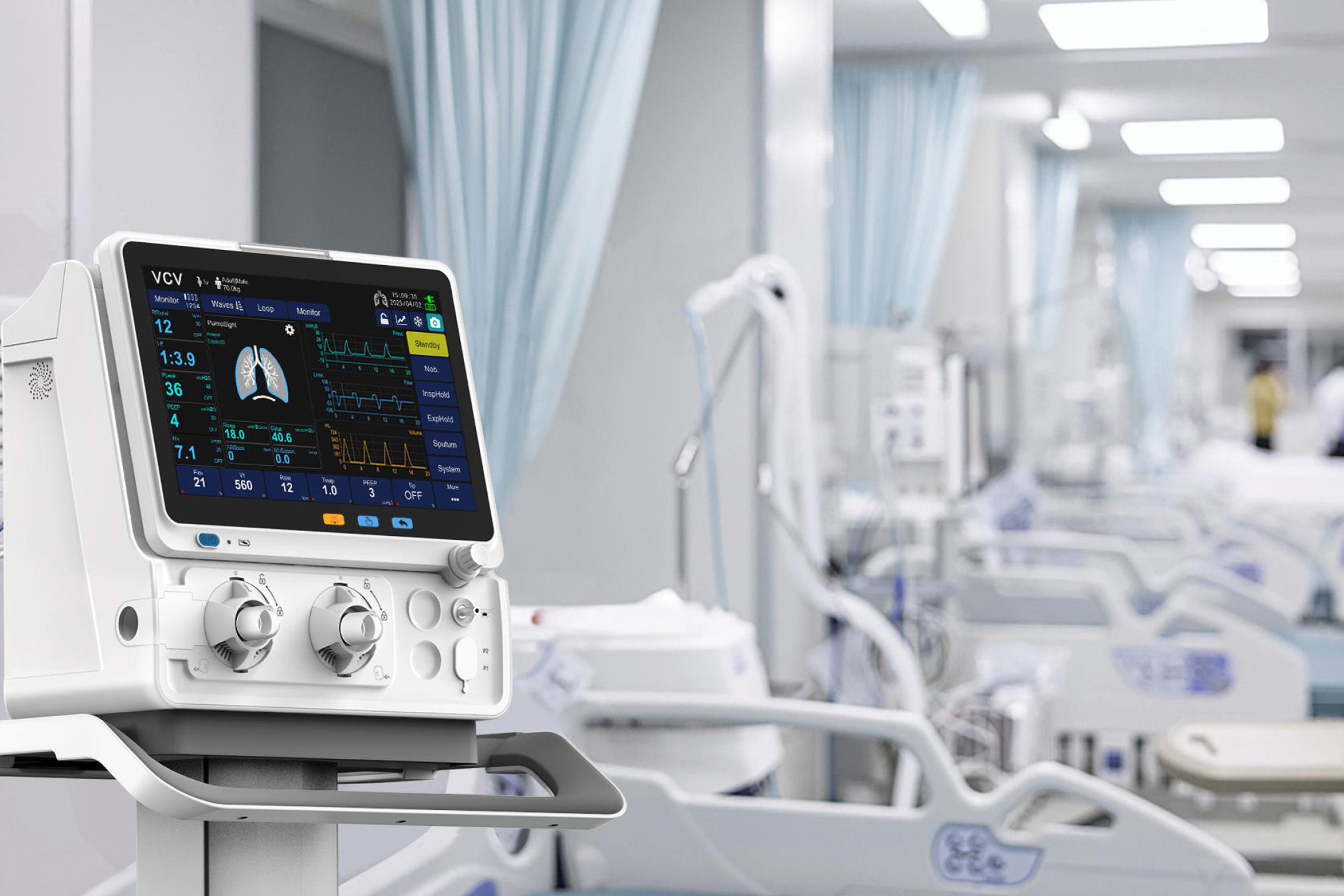

Dynamic Lung View

Visualize ventilation status, respiratory parameters, resistance, compliance and other information to simulate the real-time respiratory status of the lungs for easy observation by clinicians.

High-flow Oxygen Therapy*

High-flow oxygen therapy can rapidly increase blood oxygen saturation and reduce the symptoms of hypoxia. The ventilator has a built-in electronic air-oxygen mixer, with an adjustable range of oxygen concentration from 21% to 100%, a maximum gas flow rate of 60 L/min.

Recruitment Maneuver*

Intermittently applying continuous airway pressure and maintaining it for a period of time can recruit collapsed alveoli during ventilation. Prevent secondary alveolar atelectasis caused by low tidal volume ventilation, thereby preventing the occurrence of pulmonary complications.

Event Log Real-time Review

Provide 96 hours trends analysis graphs, storage for at least 3000 logs and alarm information. The data can be exported and saved instead of being cleared in the event of a “shut down” or power failure.

Information Interconnection Efficient Management

Ethernet, COM, HDMI, 2 USB interfaces, can connect to hospital, out-of-hospital network, monitors and other equipment, data can be exported and easily upgraded and maintained.
Optional: ETCO₂ module, SPO₂ module.

Adaptive Modes · Clinical Precision

Intelligent ventilation tailored to each patient’s needs.

Intelligent Ventilation,Lung Compliance Compensation

Multiple auxiliary tools and monitoring functions,advanced automatic compensation for tidal volume and lung compliance. Assist professionals with fast and accurate diagnosis of patient respiratory status.

01/06
Dynamic Lung View

Visualize ventilation status, respiratory parameters, resistance, compliance and other information to simulate the real-time respiratory status of the lungs for easy observation by clinicians.

02/06
High-flow Oxygen Therapy*

High-flow oxygen therapy can rapidly increase blood oxygen saturation and reduce the symptoms of hypoxia. The ventilator has a built-in electronic air-oxygen mixer, with an adjustable range of oxygen concentration from 21% to 100%, a maximum gas flow rate of 60 L/min.

03/06
Recruitment Maneuver*

Intermittently applying continuous airway pressure and maintaining it for a period of time can recruit collapsed alveoli during ventilation. Prevent secondary alveolar atelectasis caused by low tidal volume ventilation, thereby preventing the occurrence of pulmonary complications.

04/06
Event Log Real-time Review

Provide 96 hours trends analysis graphs, storage for at least 3000 logs and alarm information. The data can be exported and saved instead of being cleared in the event of a “shut down” or power failure.

05/06
Information Interconnection Efficient Management

Ethernet, COM, HDMI, 2 USB interfaces, can connect to hospital, out-of-hospital network, monitors and other equipment, data can be exported and easily upgraded and maintained.
Optional: ETCO₂ module, SPO₂ module.

06/06

Smart Control · Seamless Monitoring

Intelligent algorithms ensure safe, data-driven care.

Strong Power, Safe Protection

Strong turbine power, safe and stable control system, Parallel oxygen source design, supporting both high-pressure and low-pressure oxygen sources(Optional). Integrated design of in halation and exhalation valve components, easy to disassemble. 134°C auto-clave and high-pressure sterilization support, providing safe protection for patients.
Stable Performance, Precise Control

Capable of supporting to the various cases of emergency & critical care.
Intuitive, Concise, Easy To Use

12.1-inch LCD touchscreen, multi-angel views Flat UI design with multilingual operation and display support, including English, Spanish, French, Russian, and more.
Two-step operation for all commands.
Adjustable screen angle for multiple observation.
Visual and audio alerts.
Comprehensive Ventilation Modes

Suitable for adults and pediatric, the system provides full-process support involving both invasive and non-invasive ventilation. A variety of ventilation modes and functions effectively improve human-machine synchronization, making breathing more comfortable for patients.
Ventilation Modes Include:
VCV, PCV, PSV, CPAP, V-SIMV, V-A/C, P-A/C, P-SIMV, V-SIMV+PSV, BIP

Redefining Ventilation · Empowering Care

Pushing ICU innovation toward safer and smarter solutions.

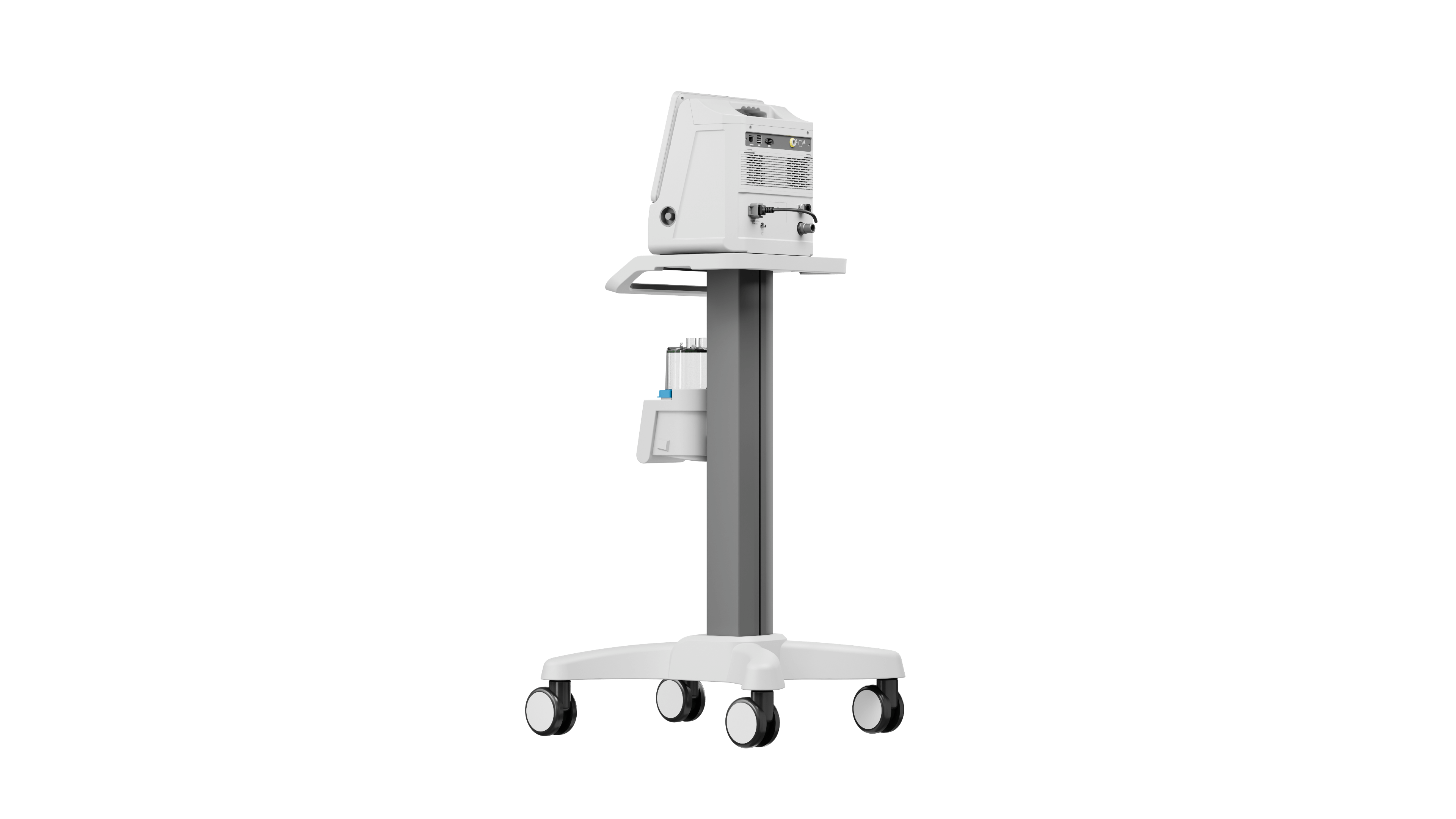

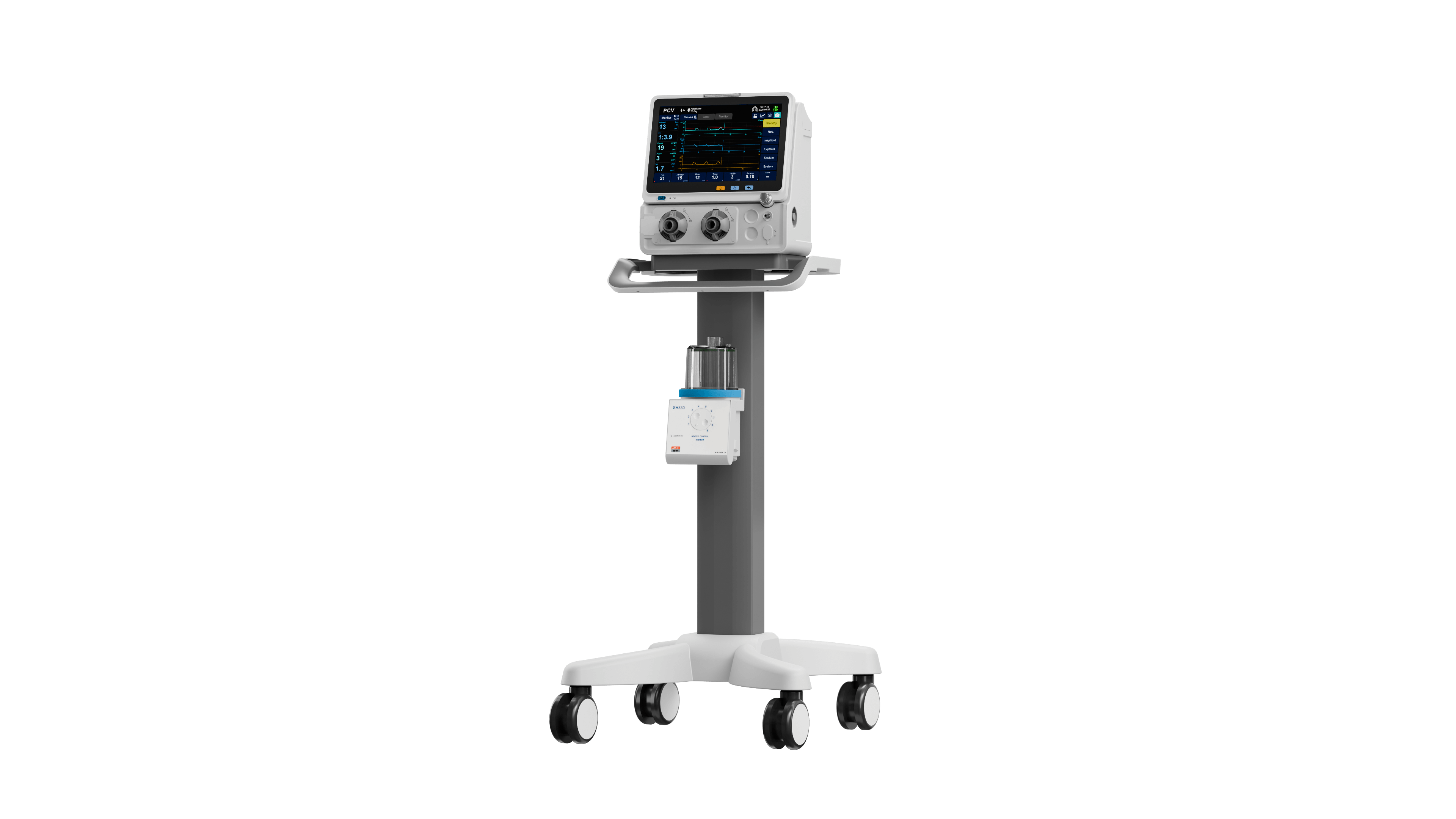

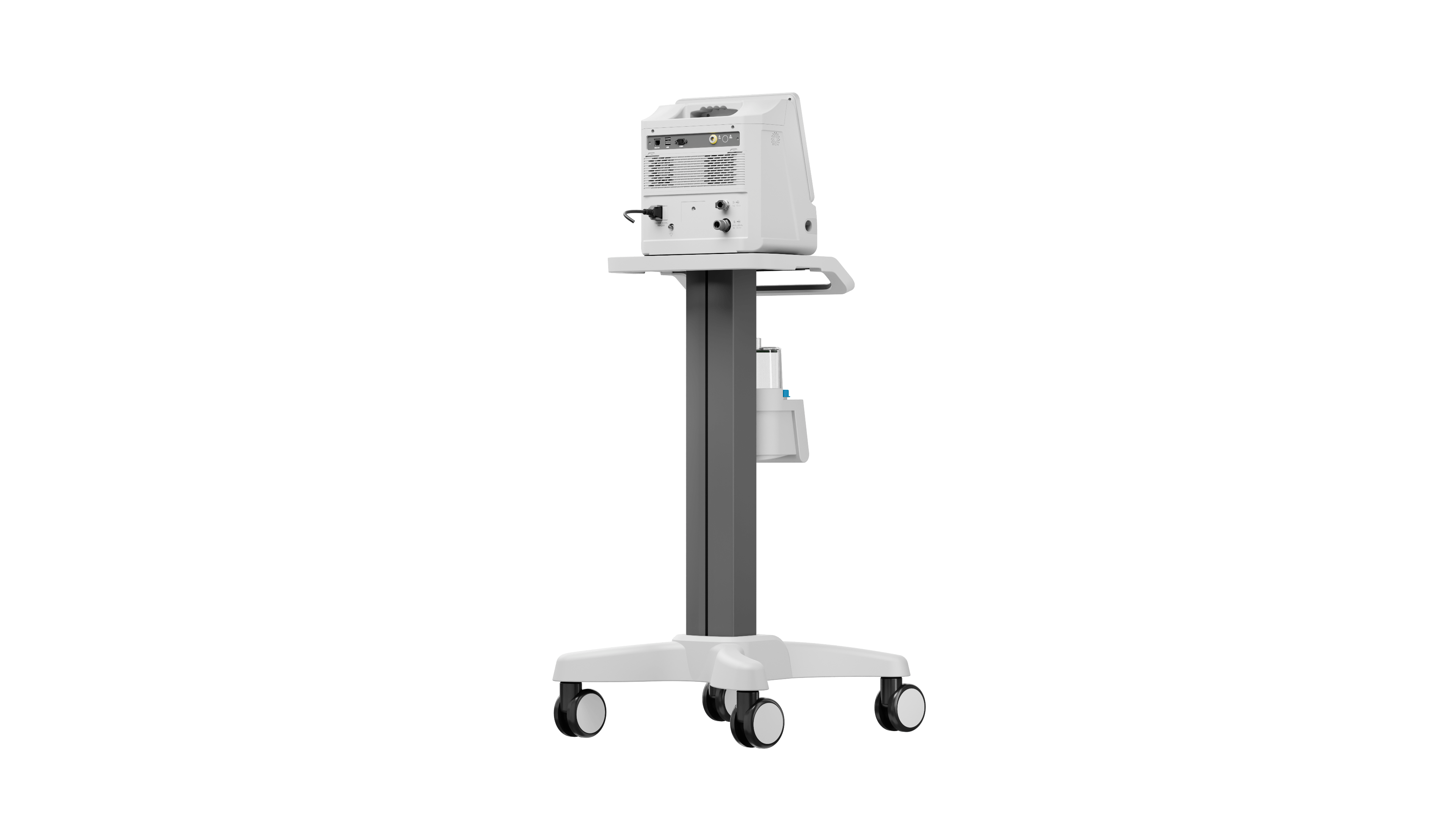

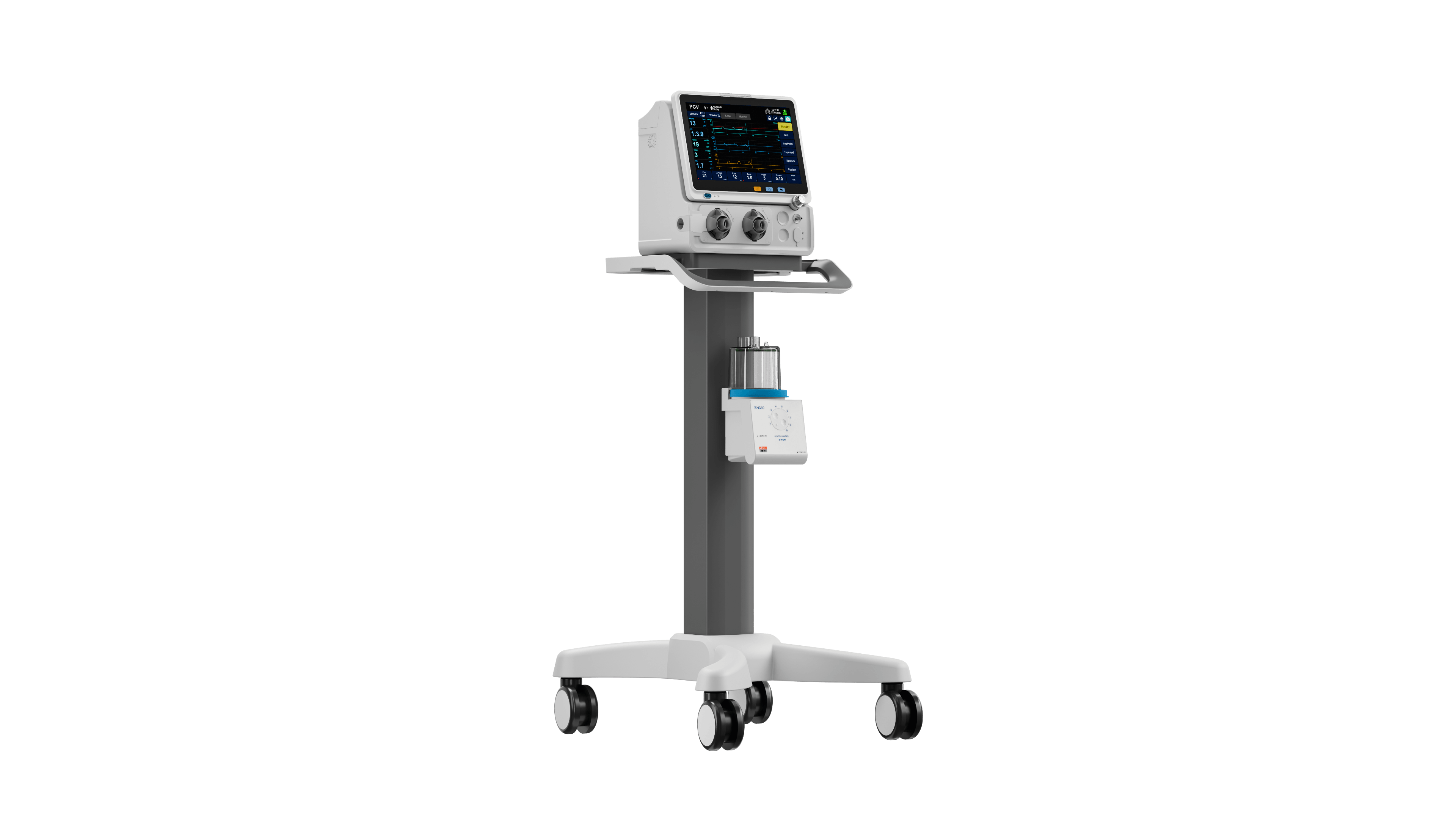

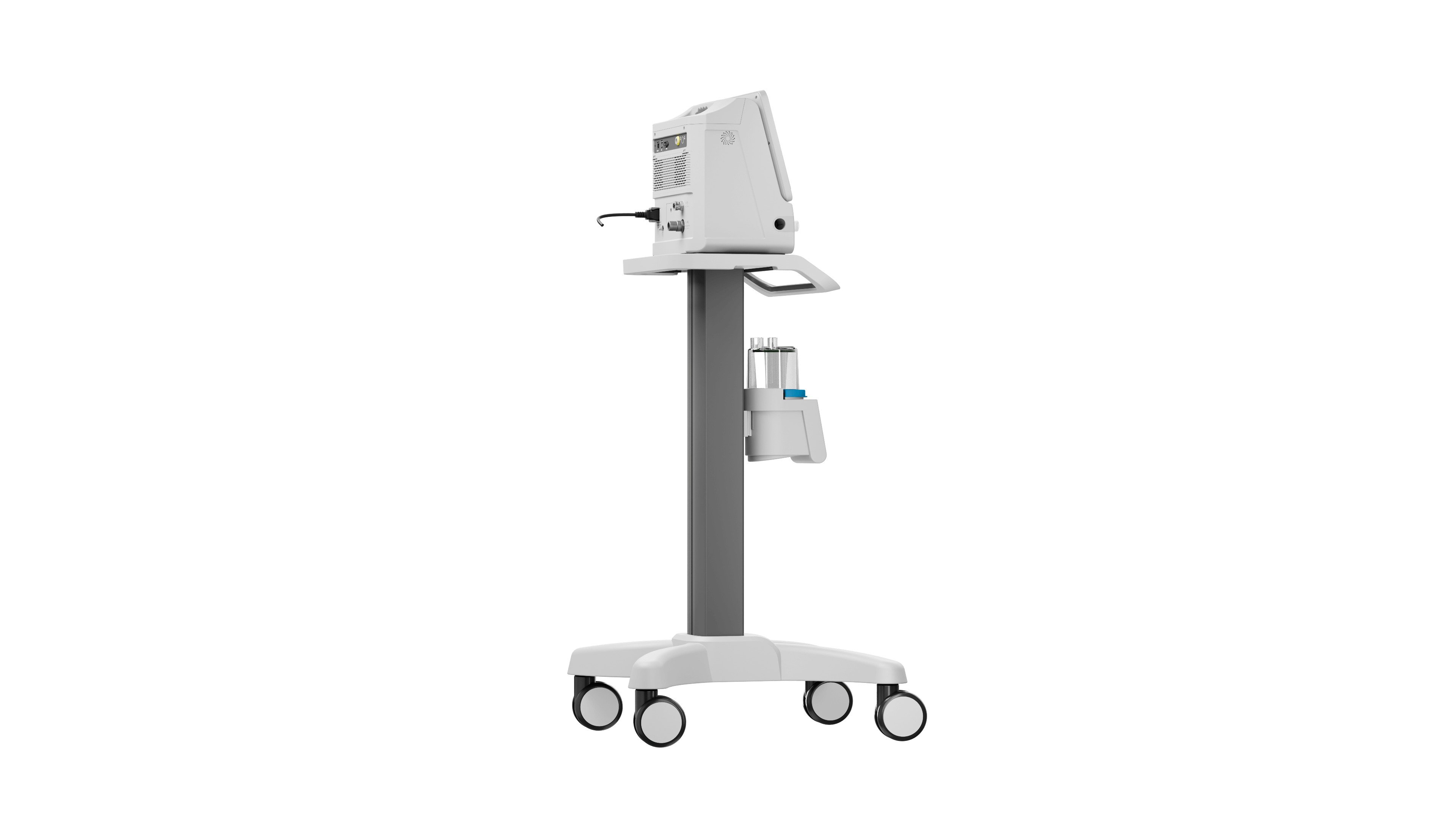

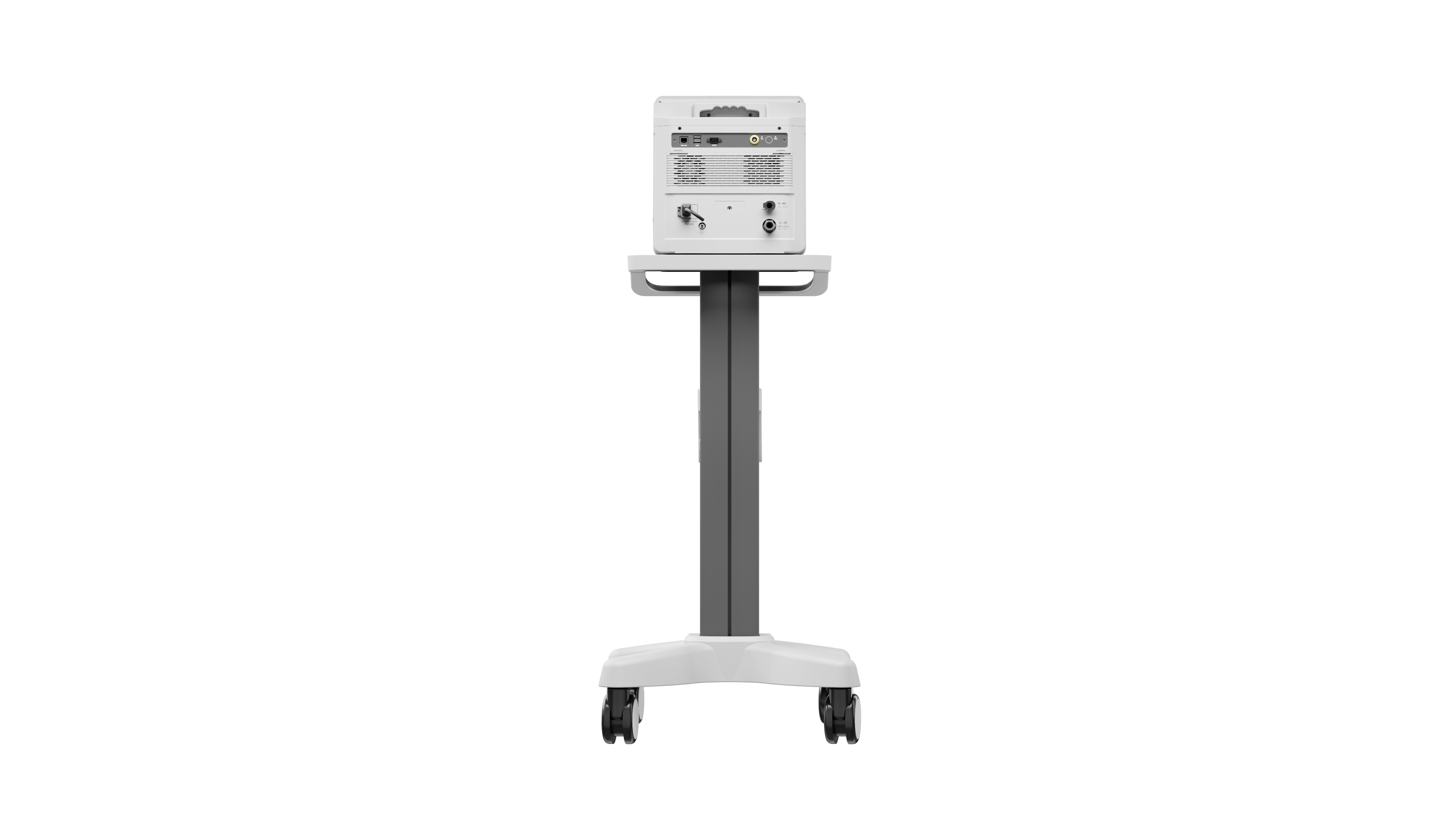

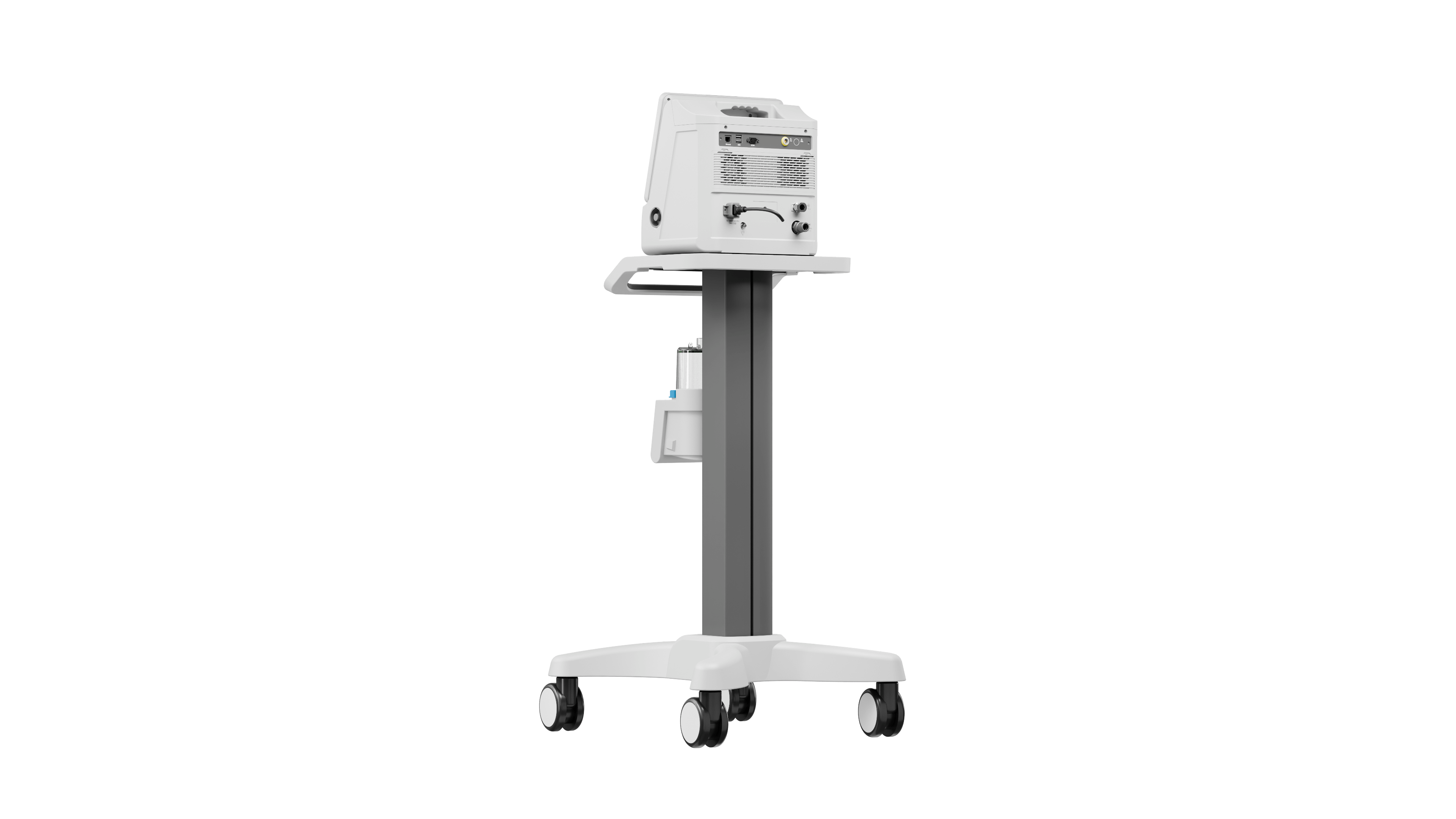

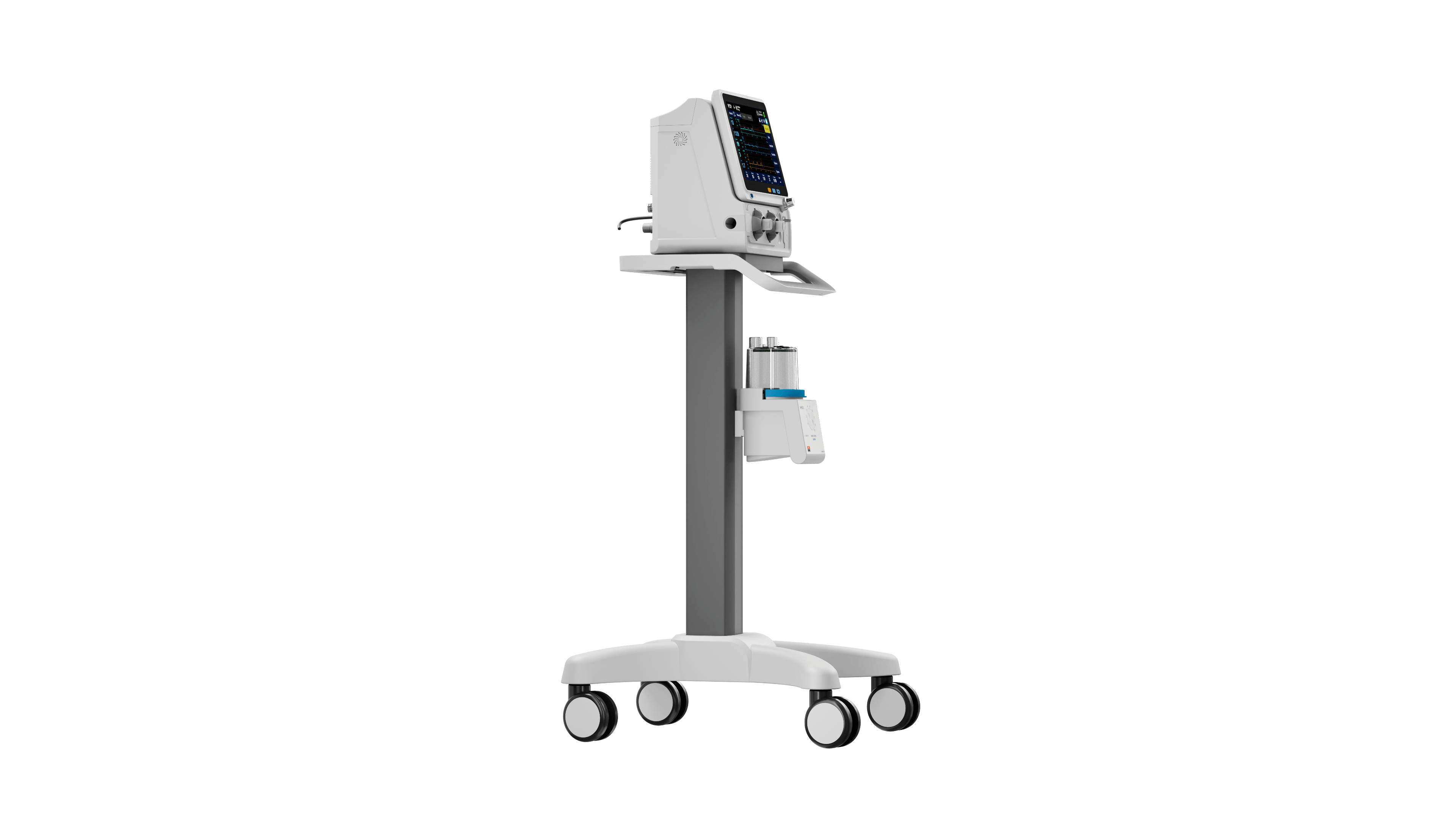

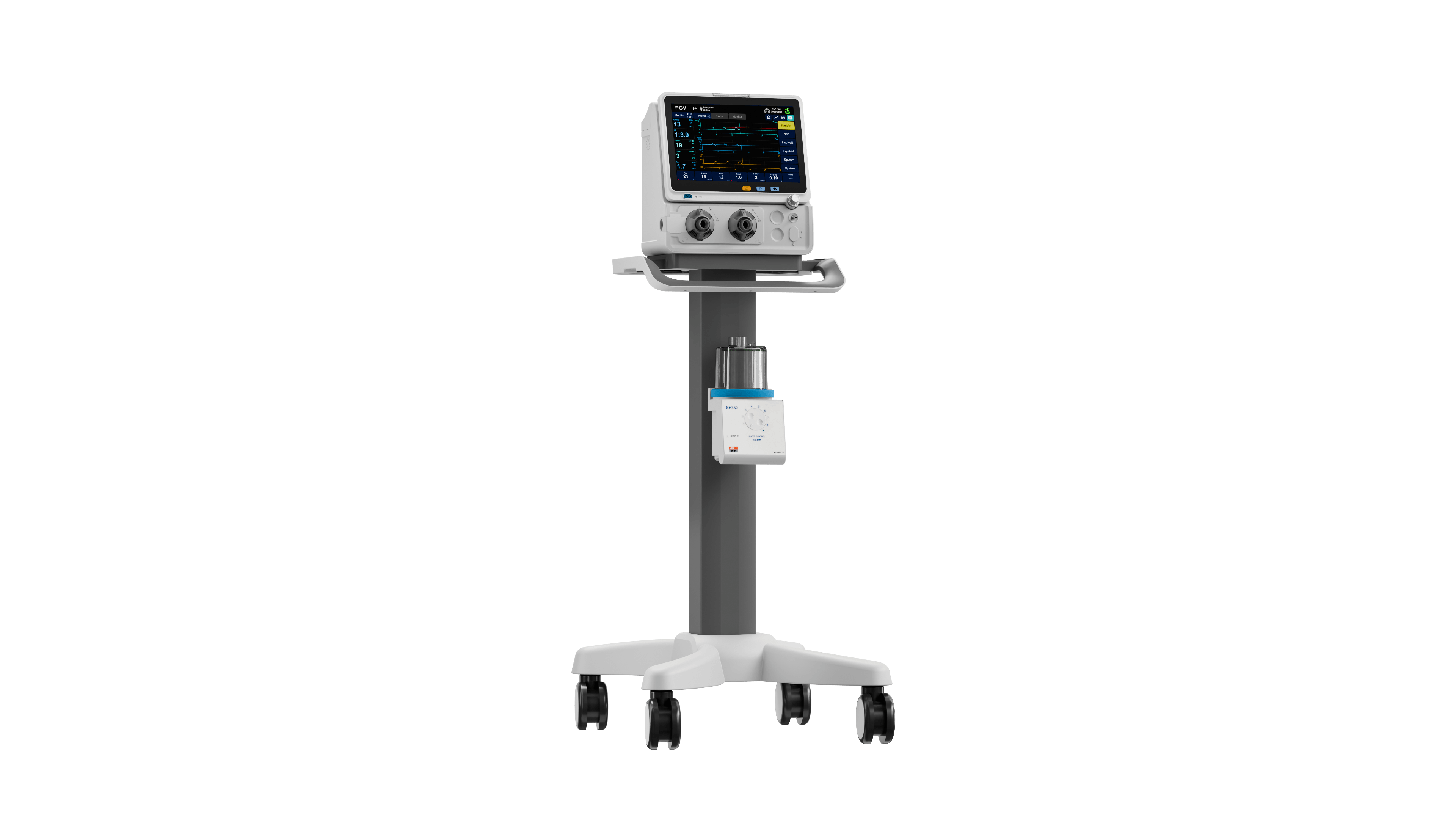

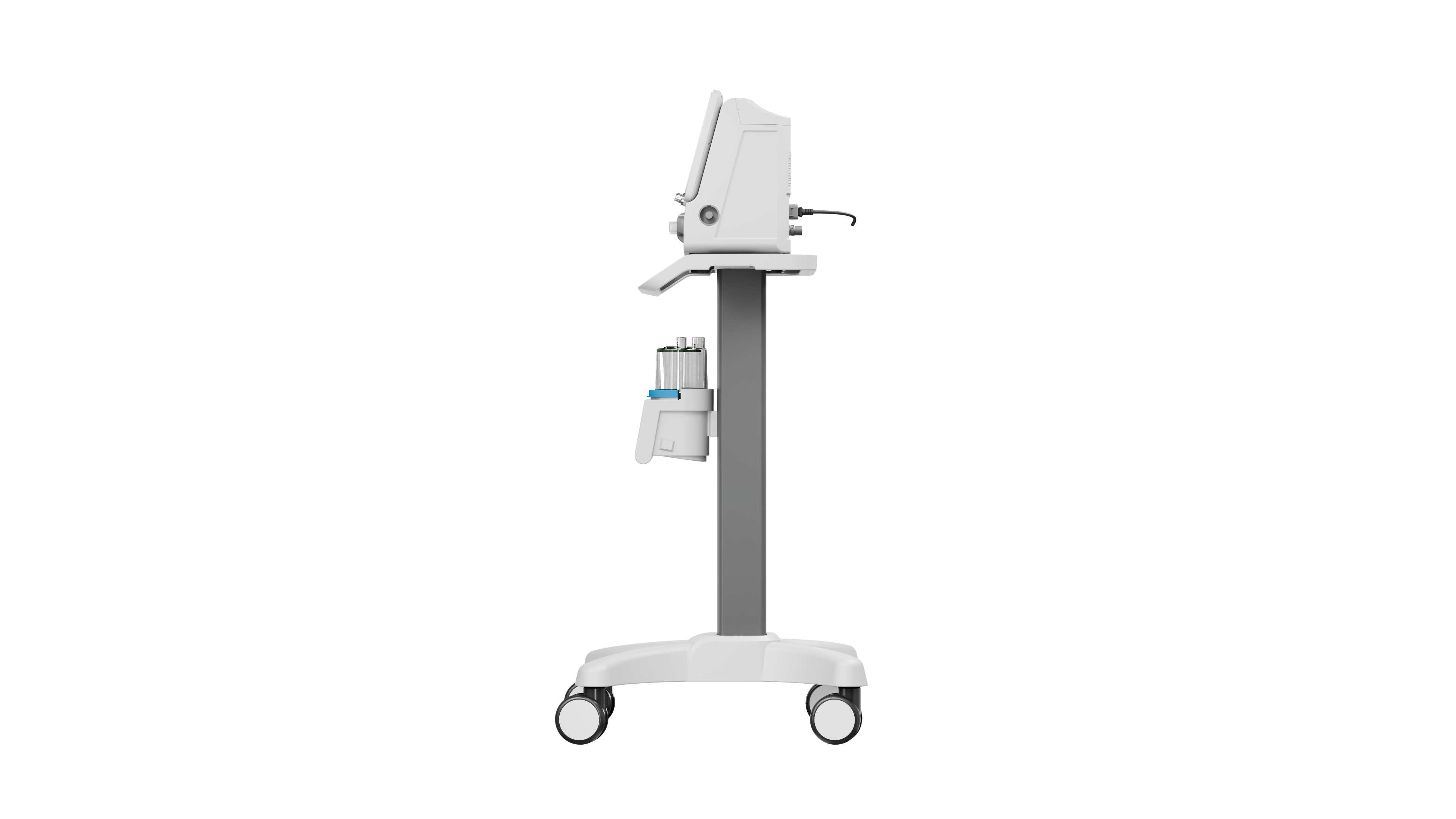

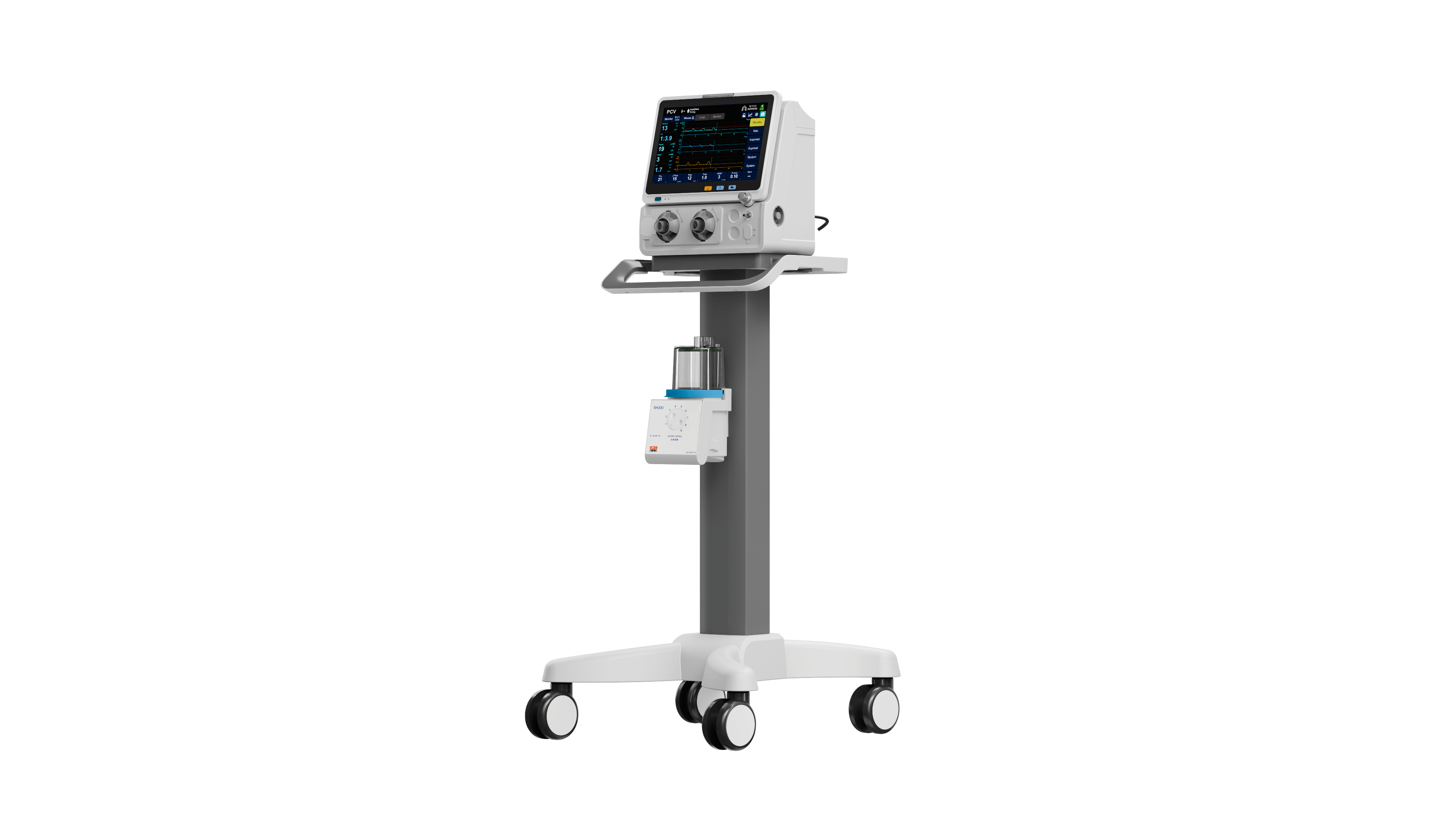

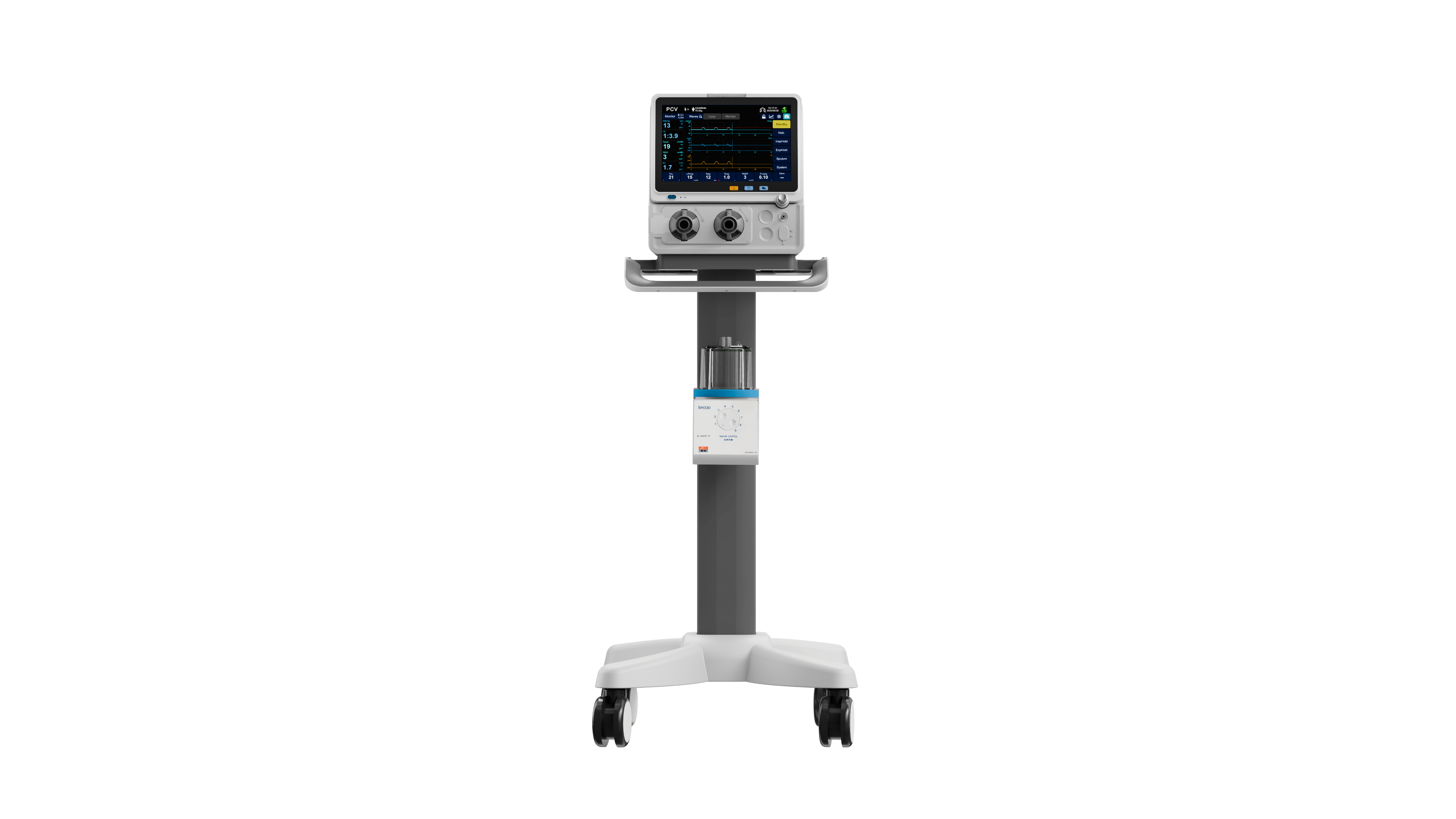

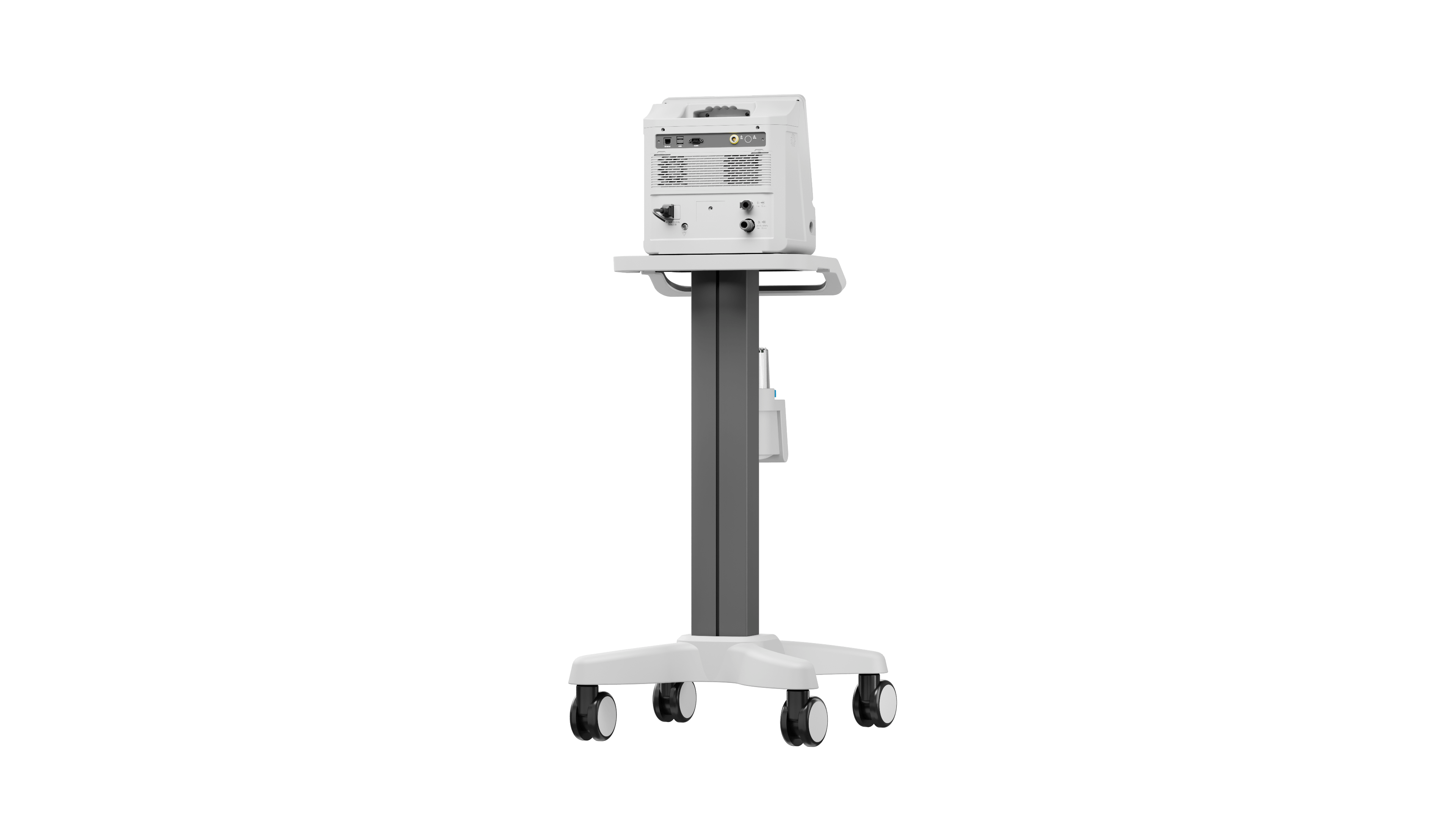

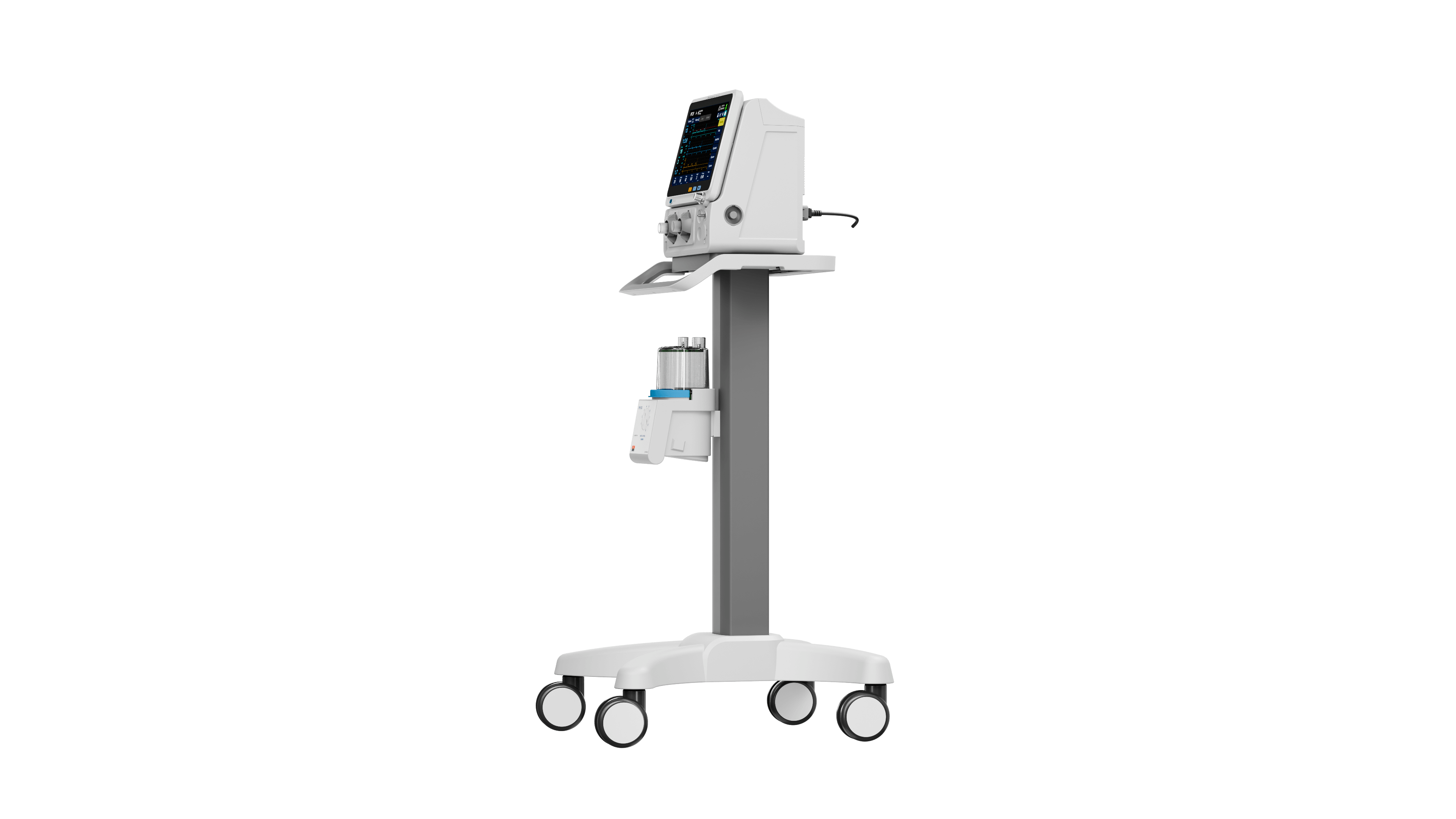

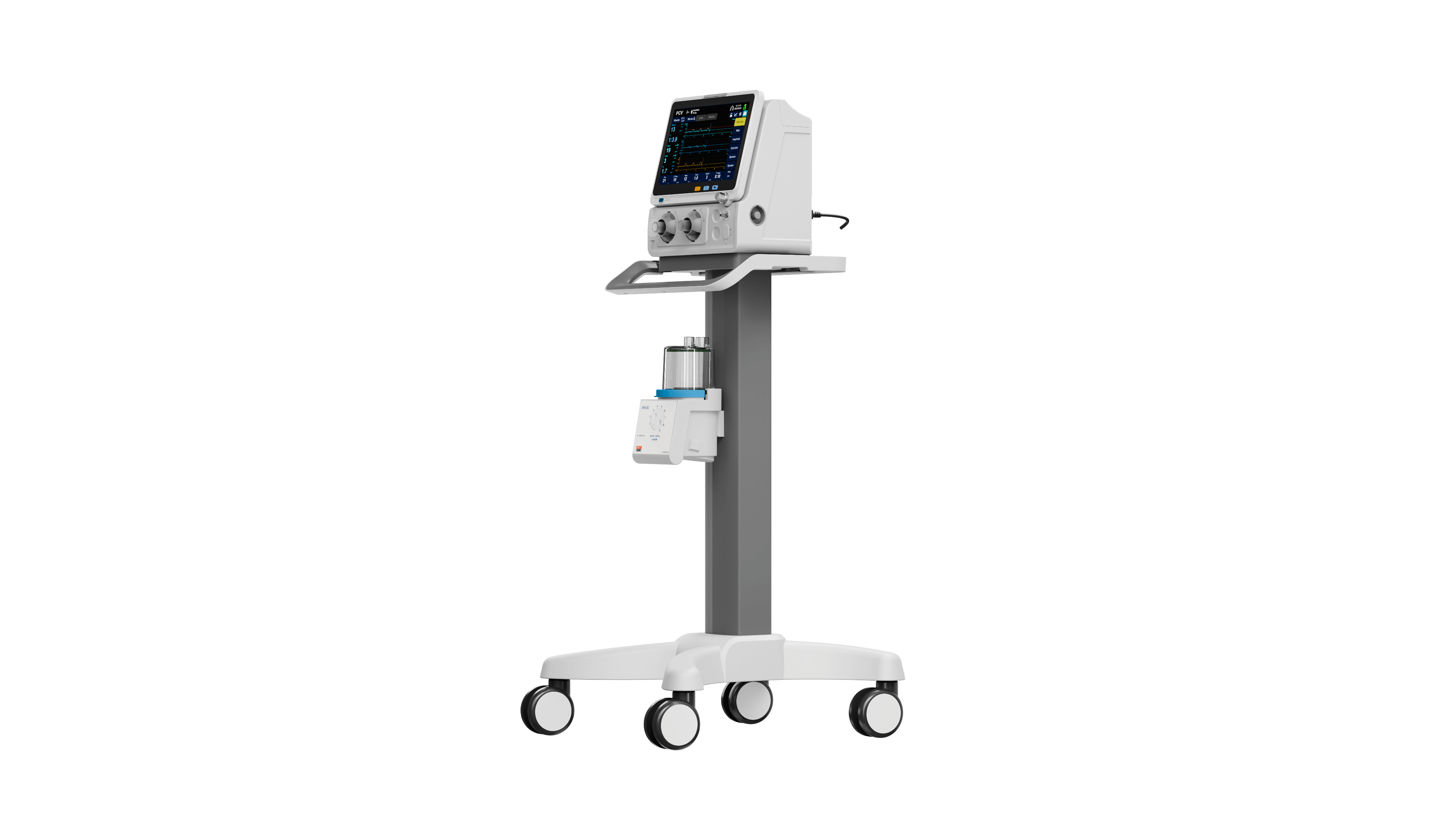

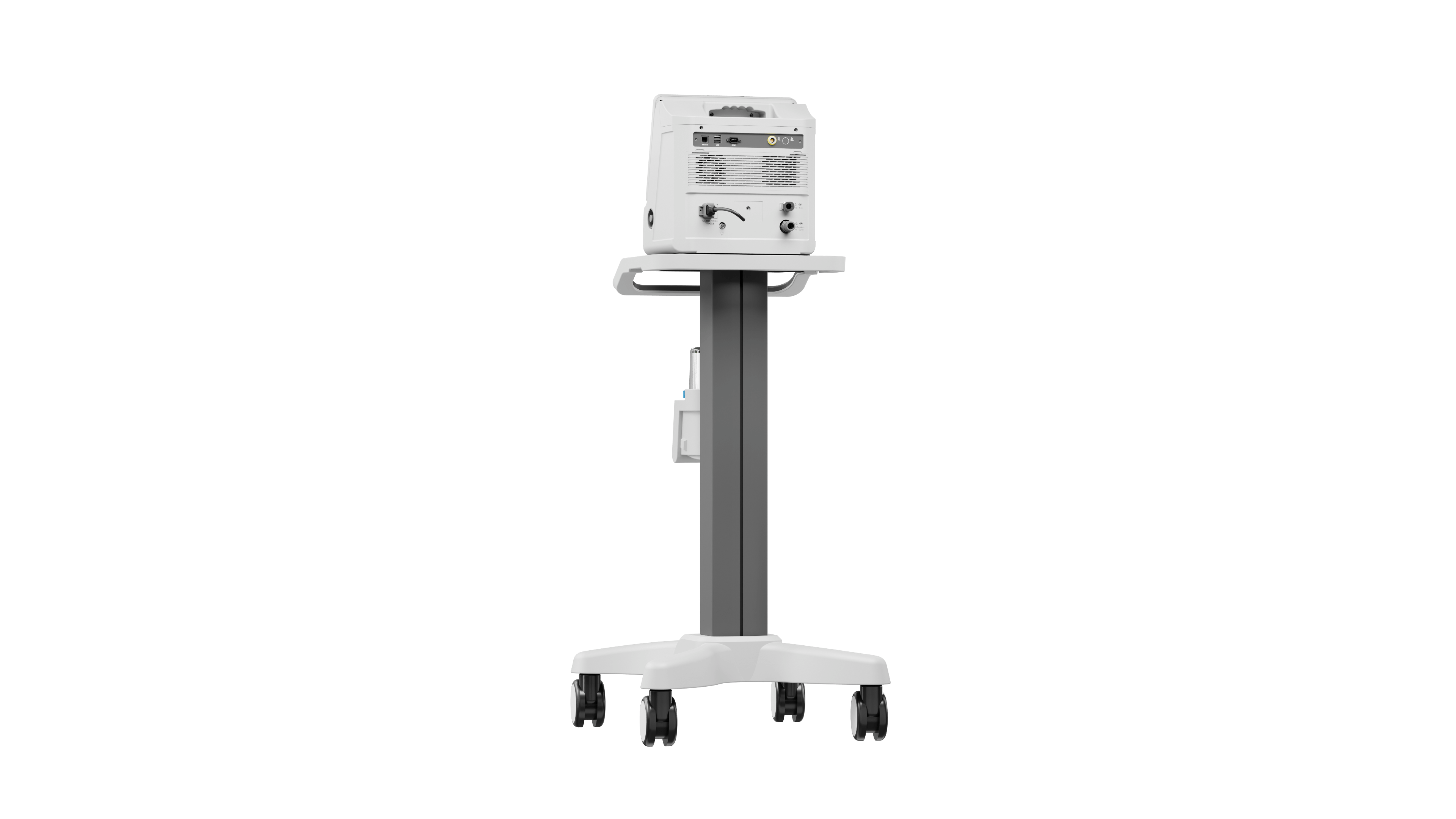

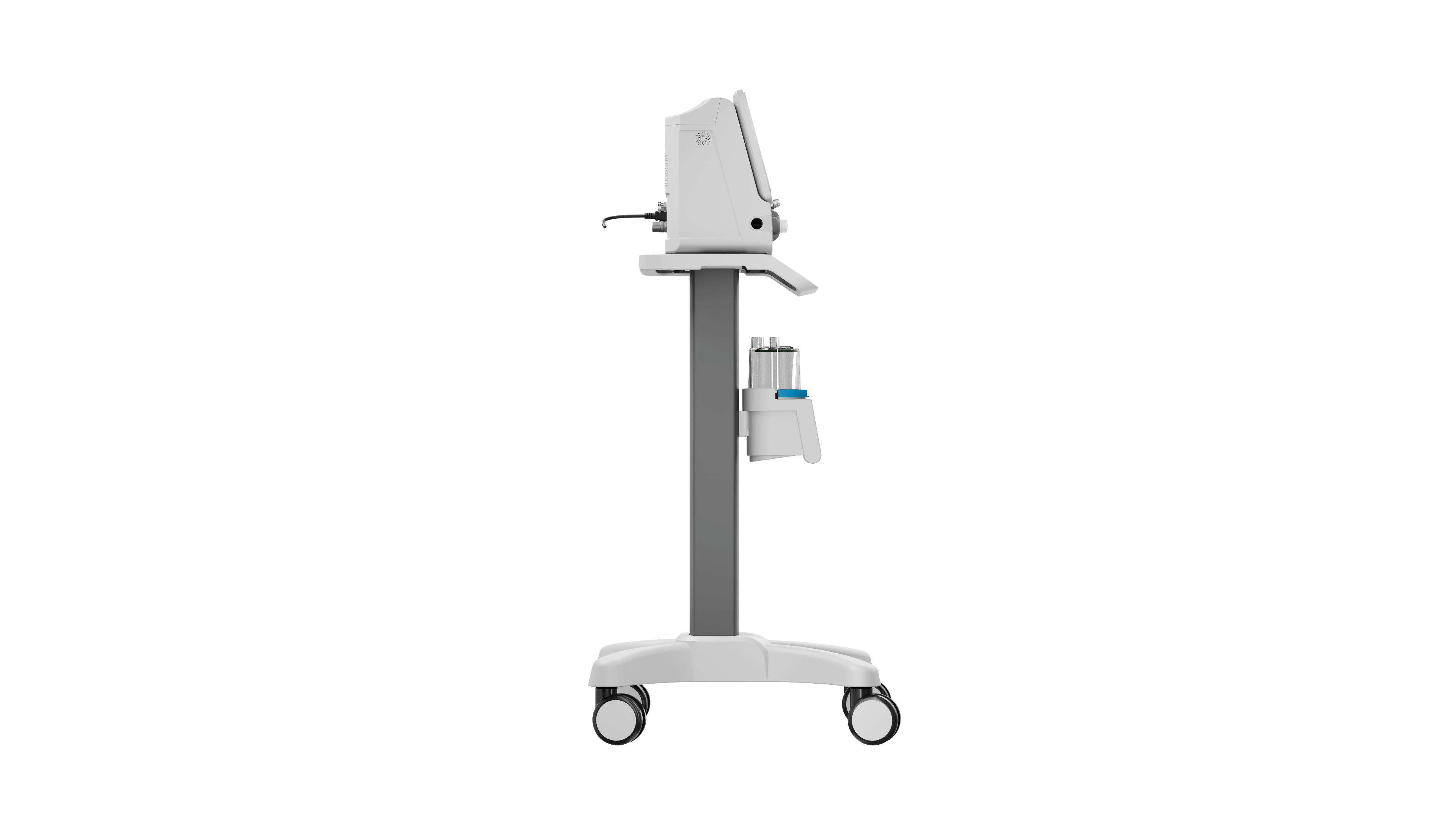

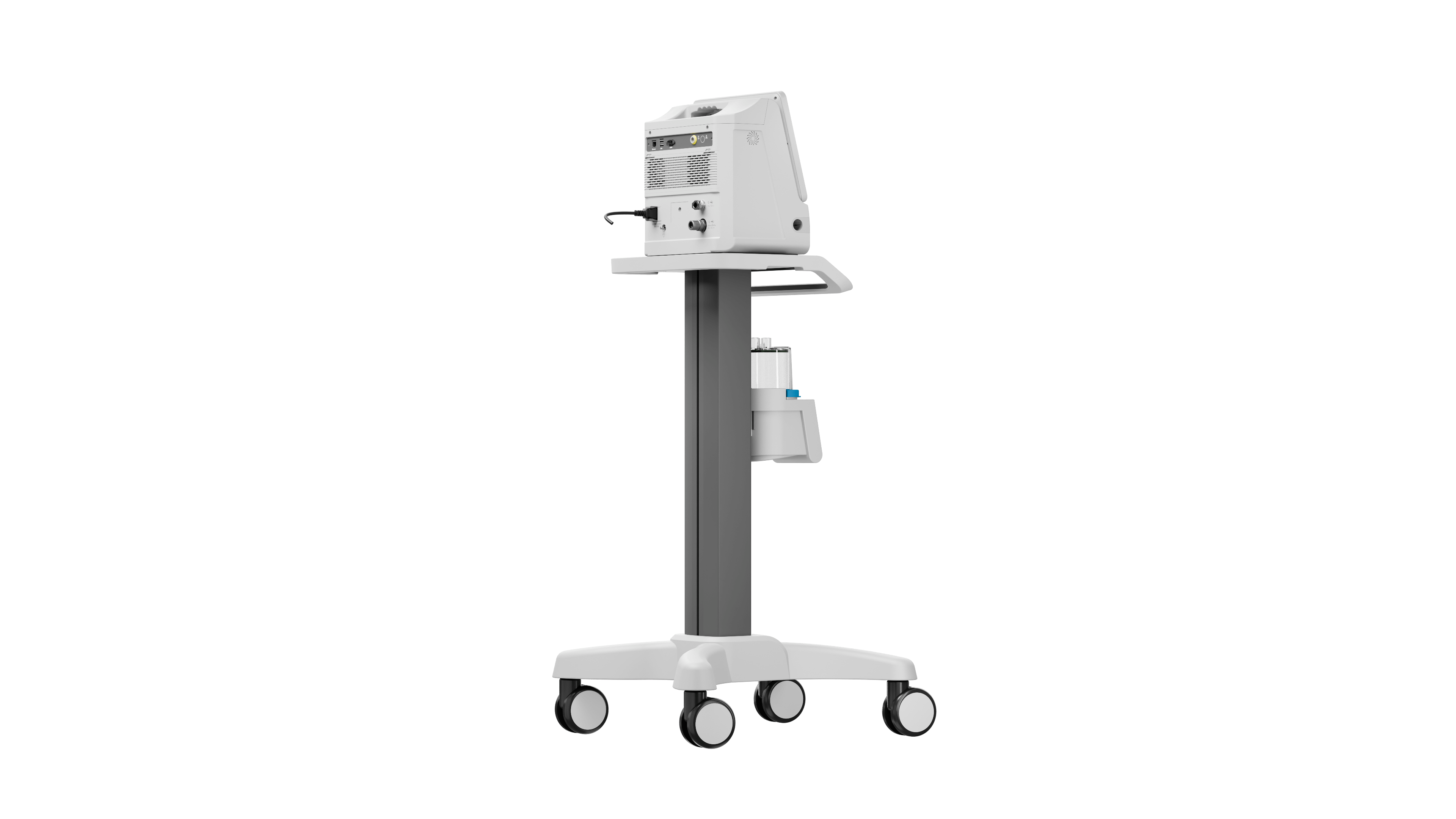

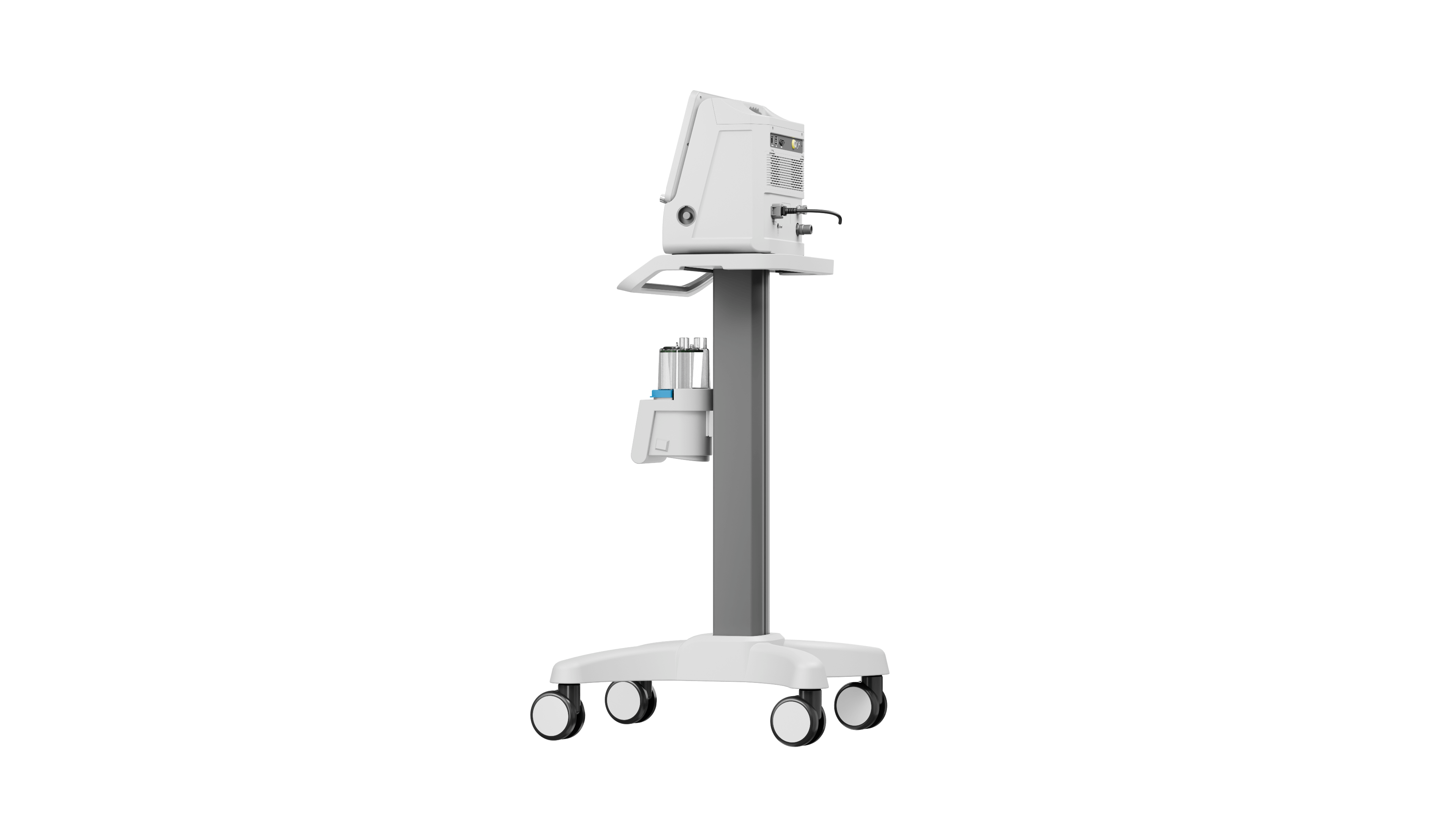

Interactive 360° View

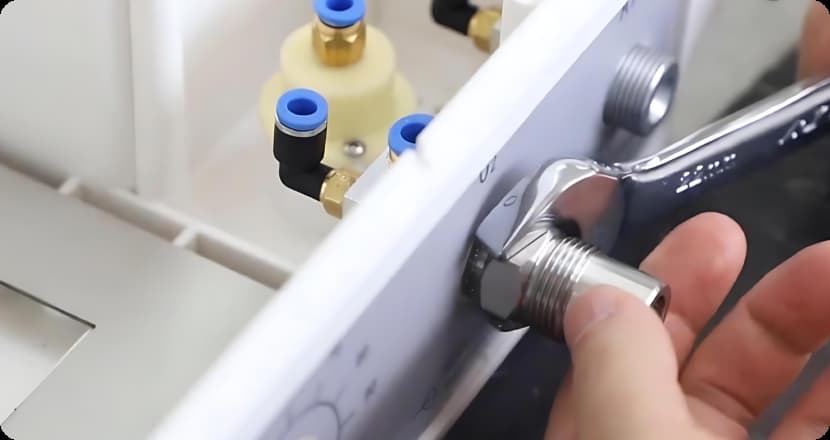

Easy to install and convenient to dismantle

12.1-inch LCD touchscreen, multi-angel views

Simple and convenient operation
Adjustable humidifier chamber

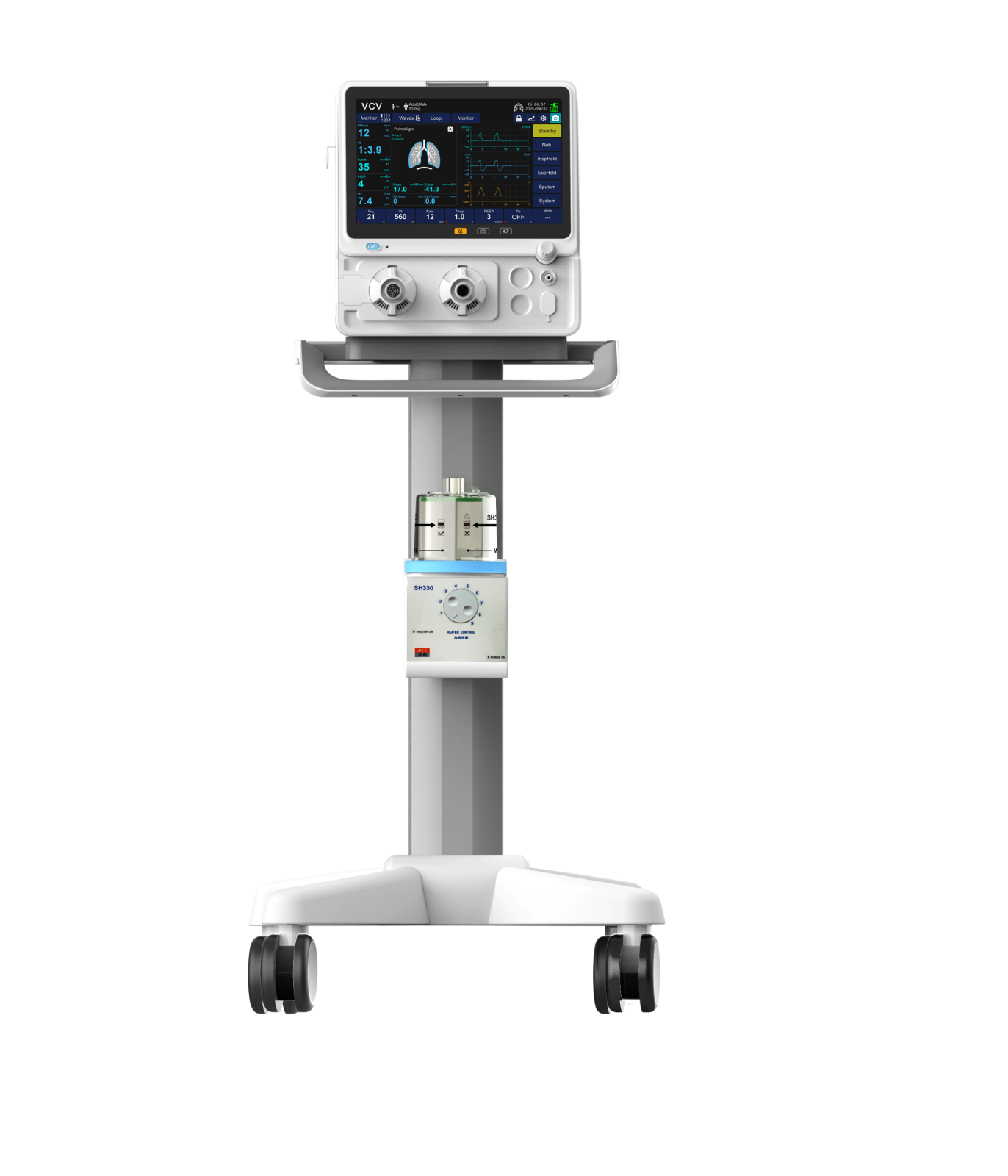

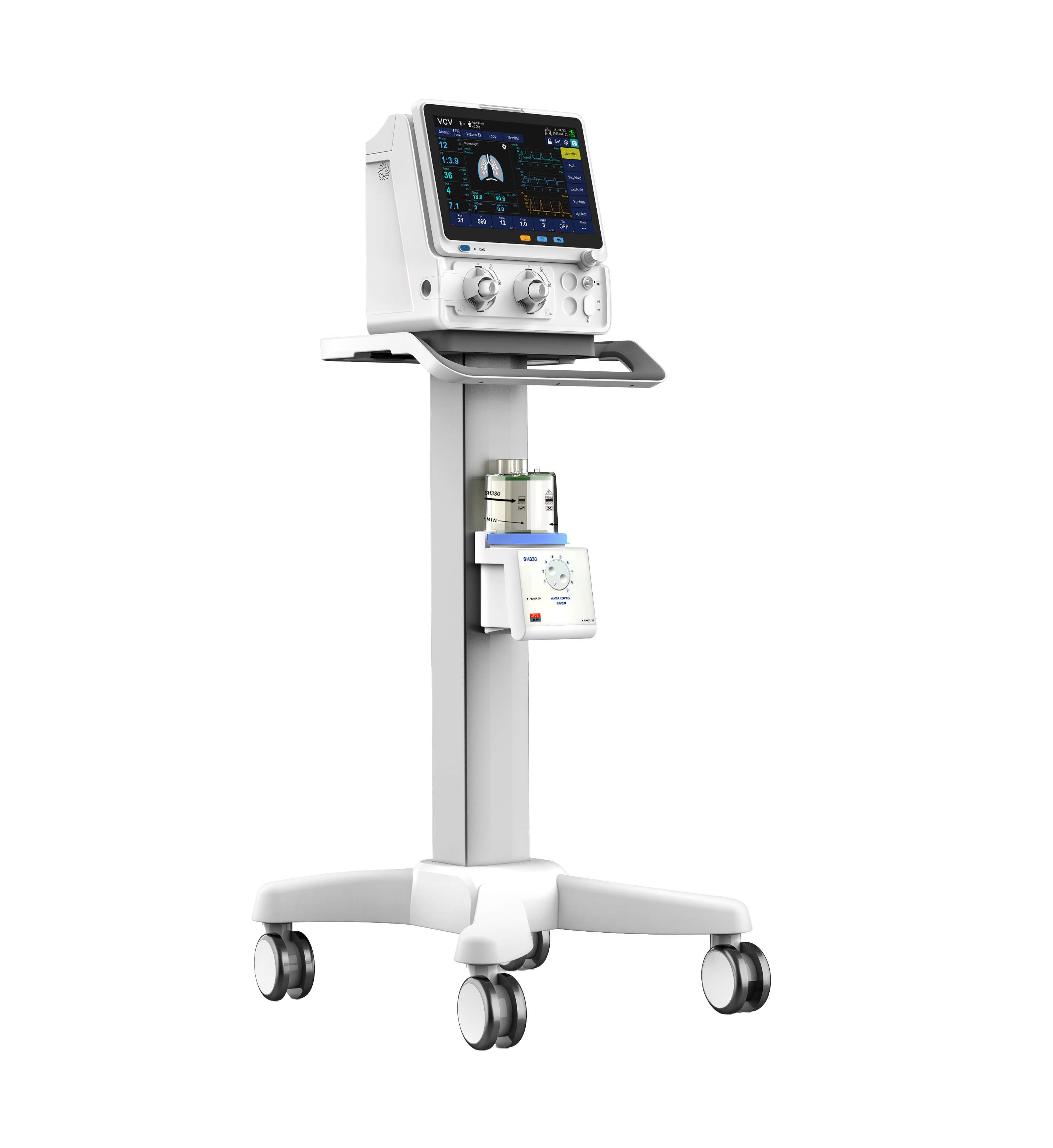

Multifunctional trolley with O₂ tank

Product Details

Brand-new interface design, intelligent control system,
imported components, ensuring safer and more stable operation.

Parameter Type

Function Description

Screen

12.1" Color active matrix TFT touch
Display parameters

VTi, VTe, VTe spon, MV, MVe spon, RR mand, RR spon, RR total, Tinsp, Texp, Ppeak, Pplat, Pmin, Pmean, PEEP, TVe/Ibw, FiO₂ , Flowpeak_insp, Flowpeak_exp, LeakageVolume, LeakageFlow, RSBI, P0.1, Rinsp, Rexp, Cstat, Cdyn, RCinsp, RCexp, WOB, EtCO₂ (Optional)
Patient type

Adult, Pediatric
Application

Invasive, Non-invasive
Ventilation Mode

VCV, PCV, PSV, V-SIMV, P-SIMV, V-SIMV+PSV, V-A/C, P-A/C, CPAP, BIPAP, APNEA, SIGH, STAND-BY
Tidal volume

20 ~ 2000 mL
Respiratory rate

1 ~ 100 bpm
O₂ Flow

3 ~ 40 L/min
Battery

180 min
