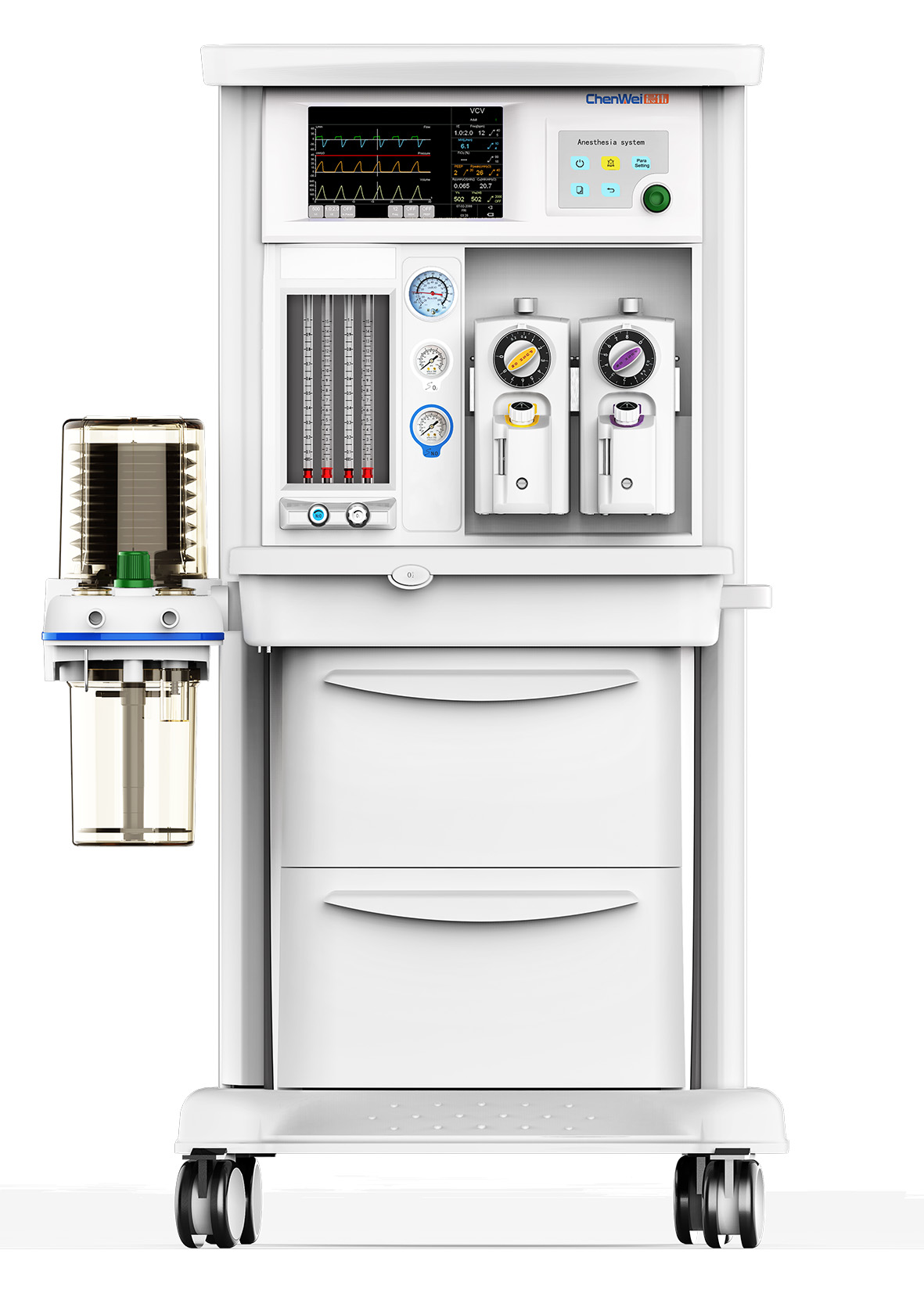

Features
• Integrated breathing circuit with APL valve, excellent tightness.
• Replacing drive bellow is NOT required when operating adult/pediatric anesthesia.
• Applied with 1 high-precision vaporizers. (Selectatec).
• 10.1 inch screen with no dead space.
• Real-time detection for loops, Paw, BPM, VT and compliance.
• Comprehensive monitoring capabilities include ventilation parameters monitoring, preset parameters, alarm indication and breathing waveform monitoring.
• ACGO available to connect with T/Bain circuit for open operation(Optional).
• Yoke system with up to 3 back up cylinders (A type with 11 L size) (Optional).
| Technique Specifications | |
| Physical Specifications | |
Dimensions | 70*85*140cm |
Weight | 65kg |
| Casters | Front wheels with lock |
| Screen | 10.1 inch LCD |
| Display graphic | Waveforms of P-T,F-T,V-T |
| Working specifications | |
Power | AC 110V-240V,50Hz/60Hz |
| Battery Power | ≥180 mins |
Pipeline Supply | |
| Gas configuration | O2,N2O,Air(Optional) |
| Pipeline input range | 280-600Kpa(40-85psi) |
| Ventilator Specifications | |
| Applications | |
| Patient range | Audlt/Pediatric |
| Modes of Ventilation | |
VCV | Volume Controlled Ventilation |
SIMV | Synchronized Intermittent Mandatory Ventilation |
Manual | Manual |
| PCV | Pressure Control Ventilator |
| STAND-BY | STAND-BY |
| A/C | Assist/Control |
| Ventilator Parameter | |
| Working type | Electronic control, pneumatic driven |
| Tidal Volume range | 20-1500ml |
| Pressure range | 5-60cmH2O |
| Rispriation rate range | 1-100bpm(1-40bpm under SIMV) |
| I:E range | 4:1-1:8 |
| Ptrigger range | ＞18L/Min |
| SIGH range | 0-5/100 |
| System Standard | |
| Hypoxic guard system | N2O cut-off Valve, O2 concentration＞25% |
| Safety valve | ＜12.5Kpa |
| O2 Flush | 25-75L/min |
| Flow meter | 4 tubes, Cascade 0.1-15L/min O2; 0.1-15L/min N2O; 0.1-15L/min air (Optional) |
| Volume for CO2 absorber | 2L |
Vaporizer | 1 Selectetac, maximum 2 mounts (Isoflurane/Enflurane/Sevoflurane/Halothane |
| Monitoring | VT,MV,BPM,Paw, Lung compliance,FiO2(Optional) |
| Alarm Limits | |
| Audio/Visua | No tidal volume, MV, Paw, Fio2(Optional),Air failure, AC power failure, Battery low |
| Pre-setting functiuons | |
| Language | CHJINESE, ENGLISH etc |
| Self-test | Automatic |
| PEEP | |
| Type | Integrated, Electronic control |
| Range | OFF, 3-30cmH2O |
| Optional features | |
| 1.ACGO | Auxiliary Common Gas Outlet |
| 2.Yoke system(Pin-index) | Support 11L cylinder O2,N2O |
| 3.AGSS | Anesthetic Gas Scavenging Systems |
